ANYLOAD Load Cell

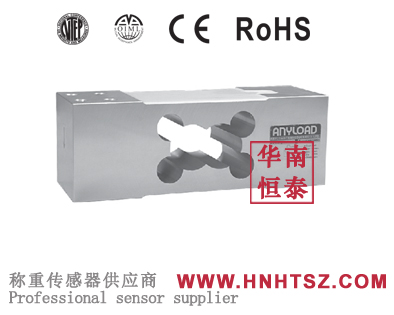

108CA-300kg load cell

Shape:Single point type load cell
Material:Aluminum
Load direction：Widely used in compression
Model:108CA-10kg 108CA-20kg 108CA-30kg 108CA-60kg 108CA-100kg 108CA-150kg 108CA-200kg 108CA-250kg 108CA-300kg 108CA-500kg 108CA-600kg 108CA-750kg 108CA-1t
Product description: 108CA-300kg is a low-cost, high-precision sensor, which can be directly installed on the base of the scale or used in weighing and force measurement. It can be applied to the packaging scale, electron
INQUIRY

Shenzhen Huanan Hengtai Industrial Co.,Ltd supply 108CA-300kg is a kind of single-point sensor which is composed of filling glue seal and aluminum material with improved glue seal technology. It has high precision, high stability, dust-proof, moisture-proof and low price. It has become the first choice for designing electronic weighing equipment, including electronic scale, platform scale, packing scale and so on.

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【ANYLOAD load cell 108CA-300kg information】
ANYLOAD load cell 108CA-300kg is hot selling product in China,quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com
ANYLOAD load cell 108CA-300kg datasheet download：

ANYLOAD load cell 108CA-300kg features：

●Material: Aluminum

●Rated Capacities: 10kg, 20kg,30kg, 60kg, 100kg, 150kg, 200kg, 250kg, 300kg, 500kg, 600kg, 750kg, 1t

●Full Scale Output: 2mV/V ± 10%

●Safe Overload: 150%

●Breaking Overload: 300%

●IP Rating: IP66

●NTEP 1:4 000, Class III, Single Cell certified from 200kg-2t

●OIML C3, Y=4 300 certified from 10kg-500kg

●CE and RoHS certified

●Measurement Ukraine certified

●Measurement Spain certified
ANYLOAD load cell 108CA-300kg dimension：

ANYLOAD load cell 108CA-300kg series models：

108CA-10kg 108CA-20kg 108CA-30kg 108CA-60kg 108CA-100kg 108CA-150kg 108CA-200kg 108CA-250kg 108CA-300kg 108CA-500kg 108CA-600kg 108CA-750kg 108CA-1t

108CA-1000kg

Shenzhen Huanan Hengtai Industrial Co.,Ltd 108CA-300kgis a single-point sensor with compact structure, beautiful appearance, convenient installation, glue sealing, high precision, excellent force measurement performance and long-term stability.

If you want to know more about 108CA-300kg price, 108CA-300kg delivery time, 108CA-300kg manufacturer, 108CA-300kg product information, 108CA-300kg product specification, 108CA-300kg technical parameters, 108CA-300kg installation and debugging, 108CA-300kg wiring mode, please contact E-mail:sales@hnhtsz.com
