ANYLOAD Load Cell

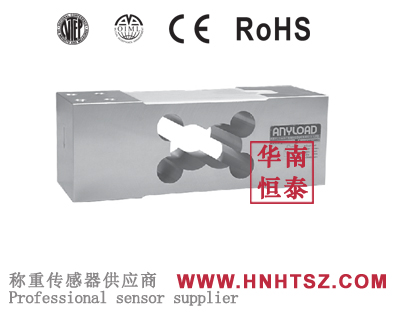

108CA-60kg load cell

Shape:Single point type load cell
Material:Aluminum
Load direction：Widely used in compression
Model:108CA-10kg 108CA-20kg 108CA-30kg 108CA-60kg 108CA-100kg 108CA-150kg 108CA-200kg 108CA-250kg 108CA-300kg 108CA-500kg 108CA-600kg 108CA-750kg 108CA-1t
Product description: 108CA-60kg is a low-cost, high-precision sensor, which can be directly installed on the base of the scale or used in weighing and force measurement. It can be applied to the packaging scale, electroni
INQUIRY

Shenzhen Huanan Hengtai Industrial Co.,Ltd supply 108CA-60kg is a kind of single-point sensor. Its shape design is simple, lively, less material, lighter weight than other types of sensors, so it becomes a spokesman of low cost and high precision. On the other hand, the single-point sensor has excellent anti-eccentric load performance and can be installed directly on the base of the scale. And weighing platform is an ideal choice for OEM applications such as electronic scales and weighing machines.

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【ANYLOAD load cell 108CA-60kg information】
ANYLOAD load cell 108CA-60kg is hot selling product in China,quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com
ANYLOAD load cell 108CA-60kg datasheet download：

ANYLOAD load cell 108CA-60kg features：

●Material: Aluminum

●Rated Capacities: 10kg, 20kg,30kg, 60kg, 100kg, 150kg, 200kg, 250kg, 300kg, 500kg, 600kg, 750kg, 1t

●Full Scale Output: 2mV/V ± 10%

●Safe Overload: 150%

●Breaking Overload: 300%

●IP Rating: IP66

●NTEP 1:4 000, Class III, Single Cell certified from 200kg-2t

●OIML C3, Y=4 300 certified from 10kg-500kg

●CE and RoHS certified

●Measurement Ukraine certified

●Measurement Spain certified
ANYLOAD load cell 108CA-60kg dimension：

ANYLOAD load cell 108CA-60kg series models：

108CA-10kg 108CA-20kg 108CA-30kg 108CA-60kg 108CA-100kg 108CA-150kg 108CA-200kg 108CA-250kg 108CA-300kg 108CA-500kg 108CA-600kg 108CA-750kg 108CA-1t

108CA-1000kg

Shenzhen Huanan Hengtai Industrial Co.,Ltd 108CA-60kgis a kind of single-point sensor which is composed of filling glue seal and aluminum material with improved glue seal technology. It has high precision, high stability, dust-proof, moisture-proof and low price. It has become the first choice for designing electronic weighing equipment, including electronic scale, platform scale, packing scale and so on.

If you want to know more about 108CA-60kg price, 108CA-60kg delivery time, 108CA-60kg manufacturer, 108CA-60kg product information, 108CA-60kg product specification, 108CA-60kg technical parameters, 108CA-60kg installation and debugging, 108CA-60kg wiring mode, please contact E-mail:sales@hnhtsz.com
