ANYLOAD Load Cell

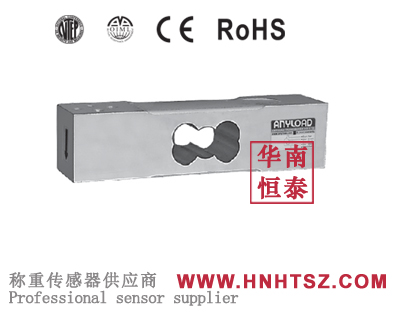

108EA load cell

Shape:Single point type load cell
Material:Aluminum
Load direction：Widely used in compression
Model:108EA-30kg 108EA-60kg 108EA-100kg 108EA-150kg 108EA-200kg 108EA-300kg
Product description: 108EA is a low-cost, high-precision sensor, which can be directly installed on the base of the scale or used in weighing and force measurement. It can be applied to the packaging scale, electronic sca
INQUIRY

Chinese Shenzhen Huanan Hengtai Industrial Co.,Ltd supply 108EA is a single point type low cross-section sensor. It is a cost-effective sensor designed to control the cost of weighing system. It has strong applicability, wide application, easy installation and easy use.

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【ANYLOAD load cell 108EAinformation】
ANYLOAD load cell 108EA is hot selling product in China, in stock,manufacturers supply, quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com
ANYLOAD load cell 108EA datasheet download：

ANYLOAD load cell 108EA features：

●Material: Aluminum

●Rated Capacities: 30kg, 60kg, 100kg, 150kg, 200kg, 300kg

●Full Scale Output: 2mV/V ± 10%

●Safe Overload: 150%

●Breaking Overload: 300%

●IP Rating: IP66

●OIML C3, Y=4 300 certified from 10kg-500kg

●CE and RoHS

●Measurement Ukraine certified

●Measurement Spain certified

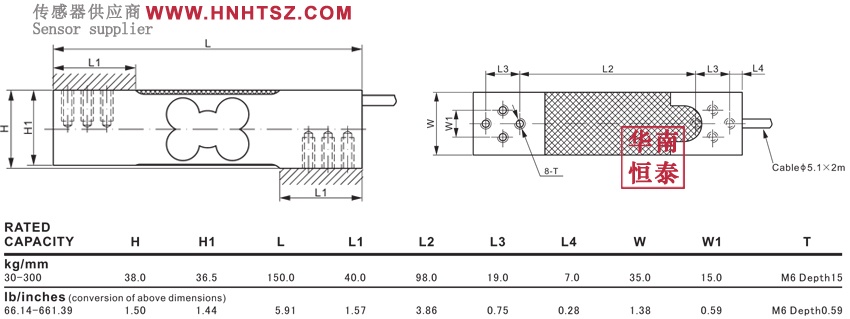

ANYLOAD load cell 108EA dimension：

ANYLOAD load cell 108EA series models：

108EA-30kg 108EA-60kg 108EA-100kg 108EA-150kg 108EA-200kg 108EA-300kg

Shenzhen HNHT supplies 108EAis a kind of single-point sensor which is composed of filling glue seal and aluminum material with improved glue seal technology. It has high precision, high stability, dust-proof, moisture-proof and low price. It has become the first choice for designing electronic weighing equipment, including electronic scale, platform scale, packing scale and so on.

If you want to know more about 108EA price, 108EA delivery time, 108EA manufacturer, 108EA product information, 108EA product specification, 108EA technical parameters, 108EA installation and debugging, 108EA wiring mode, please contact E-mail:sales@hnhtsz.com
