ANYLOAD Load Cell

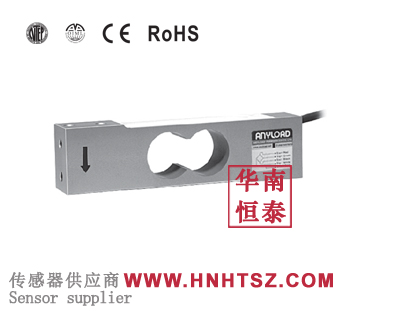

108TA-75kg load cell

Shape: single point load cell
Material:Aluminium alloy
Load direction：Compression
Model:108TA-3kg 108TA-5kg 108TA-7kg 108TA-10kg 108TA-15kg 108TA-20kg 108TA-30kg 108TA-50kg 108TA-75kg 108TA-100kg 108TA-150kg 108TA-200kg
Product description: 108TA-75kg is a compact and low-profile single-point with OIML C3 and NTEP approval. This model is ideal for a wide variety of lower-capacity applications, delivering accurate and reliable performanc
INQUIRY

Shenzhen Huanan Hengtai Industrial Co.,Ltd sale 108TA-75kg Note in use: the maximum bearing capacity does not exceed 60-70% of the rated load. In the design of the bearing device using the sensor, safety devices and limiting devices should be considered.

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【ANYLOAD load cell 108TA-75kg information】
ANYLOAD load cell 108TA-75kg is selling product in China, quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com

Note: The following information is for reference, Please refer to ANYLOAD version
ANYLOAD load cell 108TA-75kg datasheet download：

ANYLOAD load cell 108TA-75kg features：

Material: Aluminum
Thread: Metric
Rated Capacities: 3kg, 5kg, 7kg, 10kg, 15kg, 20kg, 30kg, 50kg, 75kg, 100kg, 150kg, 200kg
Full Scale Output: 2mV/V ± 10%
Safe Overload: 150%
Breaking Overload: 300%
IP Rating: IP66
NTEP 1:5 000 Class III, Single Cell certified from 15kg-150kg
OIML C3 certified from 1kg-200kg
CE and RoHS

ANYLOAD load cell 108TA-75kg Applications：

This is a high precision and cost-effective compression weighing solution, very suitable for a variety of applications, for pressure measurement, can be used with a single sensor, can also be used with multiple sensors, easy to install, debugging.

ANYLOAD load cell 108TA-75kg selection：

ANYLOAD load cell 108TA-75kg series models：

108TA-3kg 108TA-5kg 108TA-7kg 108TA-10kg 108TA-15kg 108TA-20kg 108TA-30kg 108TA-50kg 108TA-75kg 108TA-100kg 108TA-150kg 108TA-200kg

108TAUN-3kg 108TAUN-5kg 108TAUN-7kg 108TAUN-10kg 108TAUN-15kg 108TAUN-20kg 108TAUN-30kg 108TAUN-50kg 108TAUN-75kg 108TAUN-100kg 108TAUN-150kg 108TAUN-200kg

Shenzhen Huanan Hengtai Industrial Co.,Ltd sales ANYLOADIs a single point sensor, glue sealing, moisture-proof, dust-proof, with high precision, small lag and other advantages, widely used in a variety of electronic weighing occasions.

If you want to know more about ANYLOAD price, ANYLOAD delivery time, ANYLOAD manufacturer, ANYLOAD product information, ANYLOAD product specification, ANYLOAD technical parameters, ANYLOAD installation and debugging, ANYLOAD wiring mode, please contact E-mail:sales@hnhtsz.com
