ANYLOAD Load Cell

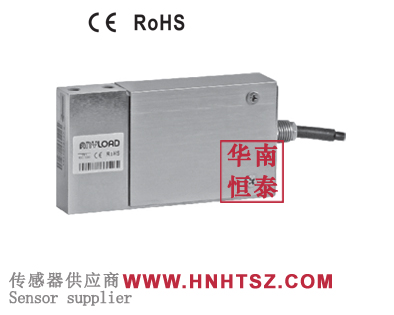

108TSST-25Lb load cell

Shape: single point load cell
Material:Stainless steel
Load direction：Compression
Model:108TSST-10Lb 108TSST-15Lb 108TSST-25Lb 108TSST-50Lb 108TSST-100Lb
Product description: 108TSST-25Lb is a robust and cost-effective stainless steel single-point load cell built for high-performance weighing in lower-capacity applications. This model delivers high-precision results witho
INQUIRY

Shenzhen Huanan Hengtai Industrial Co.,Ltd sale 108TSST-25Lb Note in use: the maximum bearing capacity does not exceed 60-70% of the rated load. In the design of the bearing device using the sensor, safety devices and limiting devices should be considered.

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【ANYLOAD load cell 108TSST-25Lb information】
ANYLOAD load cell 108TSST-25Lb is selling product in China, quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com

Note: The following information is for reference, Please refer to ANYLOAD version
ANYLOAD load cell 108TSST-25Lb datasheet download：

ANYLOAD load cell 108TSST-25Lb features：

Material: Stainless steel
Rated Capacities: 10lb, 15lb, 25lb, 50lb, 100lb

Full Scale Output: 2mV/V ± 10%
Safe Overload: 150%
Breaking Overload: 300%
IP Rating: IP66
CE and RoHS certified

ANYLOAD load cell 108TSST-25Lb Applications：

This is a high precision and cost-effective compression weighing solution, very suitable for a variety of applications, for pressure measurement, can be used with a single sensor, can also be used with multiple sensors, easy to install, debugging.

ANYLOAD load cell 108TSST-25Lb selection：

ANYLOAD load cell 108TSST-25Lb series models：

108TSST-10Lb 108TSST-15Lb 108TSST-25Lb 108TSST-50Lb 108TSST-100Lb

Shenzhen Huanan Hengtai Industrial Co.,Ltd sales ANYLOADIs a typical single point sensor, long shape design, smooth lines, simple, the use of high quality metal shell with glue sealing, the meticulous process is amazing, is one of the popular styles in the weighing sensor.

If you want to know more about ANYLOAD price, ANYLOAD delivery time, ANYLOAD manufacturer, ANYLOAD product information, ANYLOAD product specification, ANYLOAD technical parameters, ANYLOAD installation and debugging, ANYLOAD wiring mode, please contact E-mail:sales@hnhtsz.com
