ANYLOAD Load Cell

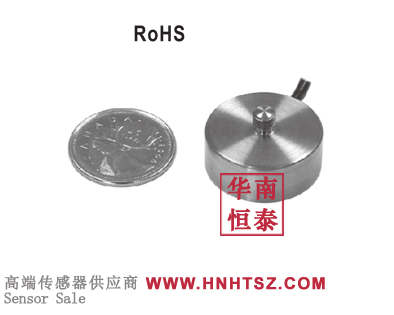

247AA-1kg load cell

Shape: Button Type load cell
Material:Aluminum
Load direction：Compression
Model:247AA-1kg,247AA-2kg,247AA-5kg,247AA-10kg,247AA-20kg,247AS-30KG,247AS-50kg,247AS-100kg,247AS-150kg,247AS-200kg,247AS-500kg,247AS-1t,247AS-2t,247AS-5t,
Product description: 247AA-1kgis suitable for force measurement in limited spaces.Widely used for industrial measurement and control， R&D and other applications.
INQUIRY

Shenzhen Huanan Hengtai Industrial Co.,Ltd supply 247AA-1kg belongs to a miniature weighing sensor. It is specially designed for pressure measurement. The center is a convex point. The design of the convex point is always the centralized design of the optimum force point of this kind of miniature weighing sensor. The performance of the force sensor is improved and the transmission of force value is more sensitive through structural amplitude increase. . The bottom is planar design, which is convenient for the placement and balance of the force sensor, makes the value obtained in the process of force measurement more accurate and speed, and reduces the loss of data in the case of high force measurement. Therefore, this kind of weighing sensor is particularly recommended from workmanship, structure, material and performance.

Note: The following information is for reference, Please refer to ANYLOAD version

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【ANYLOAD load cell 247AA-1kg information】
ANYLOAD load cell 247AA-1kg is selling product in China, quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com
ANYLOAD load cell 247AA-1kg datasheet download：

ANYLOAD load cell 247AA-1kg features：

●Material: Aluminum

●Range: 1kg, 2kg, 5kg, 10kg, 20kg(weight: 0.07kg);

●Material: 1kg, 2kg, 5kg, 10kg, 20kg (Aluminium alloy);

●The structure is small and low.

●Small deflection, the compact structure makes it have extraordinary anti-interference ability.

●Suitable for impact occasions and dynamic weighing.

●Use of hazardous environment

●Obtain CE and RoHS certification.

ANYLOAD load cell 247AA-1kg dimension：

ANYLOAD load cell 247AA-1kg series models：

247AA-1kg 247AA-2kg 247AA-5kg 247AA-10kg 247AA-20kg 247AS-30KG 247AS-50kg 247AS-100kg 247AS-150kg 247AS-200kg 247AS-500kg 247AS-1t 247AS-2t 247AS-5t 247AS-1000kg 247AS-2000kg 247AS-5000kg

247AA-1kg is more flexible in light weight, low cross-section, and well-packaged, and its price is very affordable compared to the same type and performance of micro-sensors. Because the low-cost sensor is very thin, and the force response is very sensitive, signal transmission stability, so get more and more limited space design needs force measuring equipment designers favor.

If you want to know more about 247AA-1kg price, 247AA-1kg delivery time, 247AA-1kg manufacturer, 247AA-1kg product information, 247AA-1kg product specification, 247AA-1kg technical parameters, 247AA-1kg installation and debugging, 247AA-1kg wiring mode, please contact E-mail:sales@hnhtsz.com.
