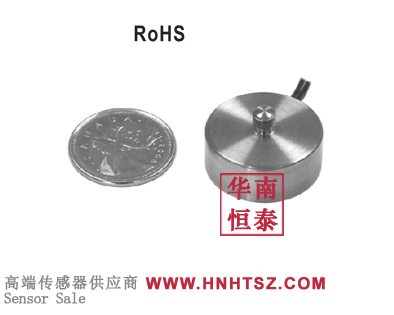

ANYLOAD Load Cell

247AS-5000kg load cell

Shape: Button Type load cell
Material:17-4PH Stainless Steel
Load direction：Compression
Model:247AA-1kg,247AA-2kg,247AA-5kg,247AA-10kg,247AA-20kg,247AS-30KG,247AS-50kg,247AS-100kg,247AS-150kg,247AS-200kg,247AS-500kg,247AS-1t,247AS-2t,247AS-5t,
Product description: 247AS-5000kgis suitable for force measurement in limited spaces.Widely used for industrial measurement and control， R&D and other applications.
INQUIRY

Shenzhen Huanan Hengtai Industrial Co.,Ltd supply 247AS-5000kg is a rare micro-scale weighing sensor, because a force measuring device is designed to meet the customer's needs in pursuit of lower cost and less space utilization, and it plays a unique role in it, low-disk precision design, coupled with sealed meticulous packaging, so that it can be in a limited space environment. It achieves very good performance, and the function of dust-proof and moisture-proof makes it more and more used in the design of micro-sensor force measurement.

Note: The following information is for reference, Please refer to ANYLOAD version

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【ANYLOAD load cell 247AS-5000kg information】
ANYLOAD load cell 247AS-5000kg is selling product in China, quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com
ANYLOAD load cell 247AS-5000kg datasheet download：

ANYLOAD load cell 247AS-5000kg features：

●Range: 30kg, 50kg, 100kg, 150kg (weight: 0.07kg);

200kg, 500kg, 1000kg (weight: 0.11kg)

5000kg, (weight 0.21kg);

●Material: stainless steel

●The structure is small and low.

●Small deflection, the compact structure makes it have extraordinary anti-interference ability.

●Suitable for impact occasions and dynamic weighing.

●Use of hazardous environment

●Obtain RoHS certification.

ANYLOAD load cell 247AS-5000kg dimension：

ANYLOAD load cell 247AS-5000kg series models：

247AS-30KG 247AS-50kg 247AS-100kg 247AS-150kg 247AS-200kg 247AS-500kg 247AS-1t 247AS-2t 247AS-5t 247AS-1000kg 247AS-2000kg 247AS-5000kg

247AS-5000kg in the rapid development of the modern market because of different environmental needs, the sensor indicators put forward more demand, and for the limited space demand, its performance is one of the best. Compact size, versatile structure output signal a variety of optional (voltage / current), can also be customized according to the needs of widely used in automation equipment for force measurement and weighing measurement.

If you want to know more about 247AS-5000kg price, 247AS-5000kg delivery time, 247AS-5000kg manufacturer, 247AS-5000kg product information, 247AS-5000kg product specification, 247AS-5000kg technical parameters, 247AS-5000kg installation and debugging, 247AS-5000kg wiring mode, please contact E-mail:sales@hnhtsz.com.
