ANYLOAD Load Cell

  • 266AH-250kg load cell

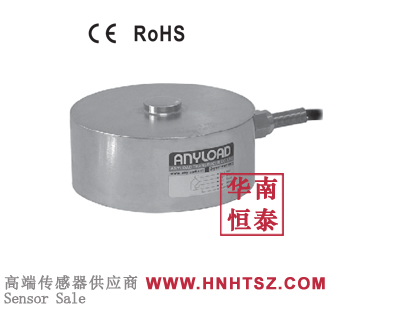

266AH-250kg load cell

266AH-250kg load cell

  • Shape:Disk type load cell
  • Material:Alloy steel
  • Load direction:Compression
  • Model:266AA-25kg 266AA-50kg 266AH-100kg 266AH-200kg 266AH-250kg 266AH-500kg 266AH-1t 266AH-2t 266AH-5t 266AH-10t 266AH-20t 266AH-30t
  • Product description: 266AH-250kgis suitable for force measurement in limited spaces.Widely used for industrial measurement and control, R&D and other applications.
  • INQUIRY

266AH-250kg is the careful design of Canadian designers, using classical materials to play around the sensor design elements, using a disc-shaped design method, sealed appearance, making it a highly recommended model in micro pressure sensors, that is, suitable for complex environments, but also for space constraints.

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation

Note: The following information is for reference, Please refer to ANYLOAD version
【ANYLOAD load cell 266AH-250kg information】
ANYLOAD load cell 266AH-250kg is hot selling product in China, in stock,manufacturers supply, quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com
ANYLOAD load cell 266AH-250kg datasheet download:


ANYLOAD load cell 266AH-250kg FEATURES:

Capacity: 100kg, 200kg, 300kg, 500kg, 1T, 2T (weight 0.5kg); 3t, 5t, 10t (weight 2.4kg); 20t (weight 4.2kg); 30t (weight 8.3kg).

Material: alloy steel

Patent design

The structure is small and low.

Small deflection, the compact structure makes it have extraordinary anti-interference ability.

Suitable for impact occasions and dynamic weighing.

Full welding seal, protection grade IP67

Use of hazardous environment

Obtain CE and RoHS certification.

Optional:

- heat resistant 120 [248 C]

- lightning protection and high current.

- six line system

- stainless steel (range greater than 100kg) 266AS

- IP68

ANYLOAD load cell 266AH-250kg dimension:

ANYLOAD load cell 266AH-250kg series models:

266AH-100kg  266AH-200kg  266AH-250kg  266AH-500kg  266AH-1t  266AH-2t  266AH-5t  266AH-10t  266AH-20t  266AH-30t

266AH-1000kg  266AH-2000kg  266AH-5000kg  266AH-10000kg  266AH-20000kg  266AH-30000kg

   266AH-250kgis compact size, universal structure, low cross-section, sealed, cable-type output, output signals of a variety of optional (voltage/current), widely used in automation equipment for weighing or force measurement, is a force-measuring micro-weighing sensor rare excellent recommendation.

If you want to know more about 266AH-250kg price, 266AH-250kg delivery time, 266AH-250kg manufacturer, 266AH-250kg product information, 266AH-250kg product specification, 266AH-250kg technical parameters, 266AH-250kg installation and debugging, 266AH-250kg wiring mode, please contact E-mail:sales@hnhtsz.com
