ANYLOAD Load Cell

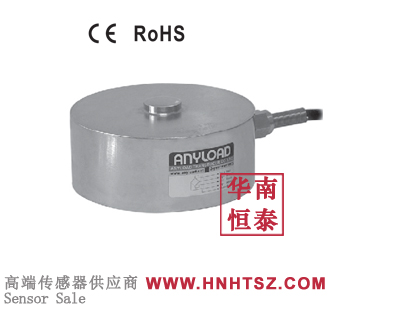

266AH-2t load cell

Shape:Disk type load cell
Material:Alloy steel
Load direction：Compression
Model:266AA-25kg 266AA-50kg 266AH-100kg 266AH-200kg 266AH-250kg 266AH-500kg 266AH-1t 266AH-2t 266AH-5t 266AH-10t 266AH-20t 266AH-30t
Product description: 266AH-2tis suitable for force measurement in limited spaces.Widely used for industrial measurement and control， R&D and other applications.
INQUIRY

266AH-2t belongs to a miniature weighing sensor. It is specially designed for pressure measurement. The center is a convex point. The design of the convex point is always the centralized design of the optimum force point of this kind of miniature weighing sensor. The performance of the force sensor is improved and the transmission of force value is more sensitive through structural amplitude increase. . The bottom is planar design, which is convenient for the placement and balance of the force sensor, makes the value obtained in the process of force measurement more accurate and speed, and reduces the loss of data in the case of high force measurement. Therefore, this kind of weighing sensor is particularly recommended from workmanship, structure, material and performance.

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation

Note: The following information is for reference, Please refer to ANYLOAD version
【ANYLOAD load cell 266AH-2t information】
ANYLOAD load cell 266AH-2t is hot selling product in China, in stock,manufacturers supply, quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com
ANYLOAD load cell 266AH-2t datasheet download：

ANYLOAD load cell 266AH-2t FEATURES：

●Capacity: 100kg, 200kg, 300kg, 500kg, 1T, 2T (weight 0.5kg); 3t, 5t, 10t (weight 2.4kg); 20t (weight 4.2kg); 30t (weight 8.3kg).

●Material: alloy steel

●Patent design

●The structure is small and low.

●Small deflection, the compact structure makes it have extraordinary anti-interference ability.

●Suitable for impact occasions and dynamic weighing.

●Full welding seal, protection grade IP67

●Use of hazardous environment

●Obtain CE and RoHS certification.

●Optional:

- heat resistant 120 [248 C]

- lightning protection and high current.

- six line system

- stainless steel (range greater than 100kg) 266AS

- IP68

ANYLOAD load cell 266AH-2t dimension：

ANYLOAD load cell 266AH-2t series models：

266AH-100kg 266AH-200kg 266AH-250kg 266AH-500kg 266AH-1t 266AH-2t 266AH-5t 266AH-10t 266AH-20t 266AH-30t

266AH-1000kg 266AH-2000kg 266AH-5000kg 266AH-10000kg 266AH-20000kg 266AH-30000kg

266AH-2t is the careful design of Canadian designers, using classical materials to play around the sensor design elements, using a disc-shaped design method, sealed appearance, making it a highly recommended model in micro pressure sensors, that is, suitable for complex environments, but also for space constraints.

If you want to know more about 266AH-2t price, 266AH-2t delivery time, 266AH-2t manufacturer, 266AH-2t product information, 266AH-2t product specification, 266AH-2t technical parameters, 266AH-2t installation and debugging, 266AH-2t wiring mode, please contact E-mail:sales@hnhtsz.com
