ANYLOAD Load Cell

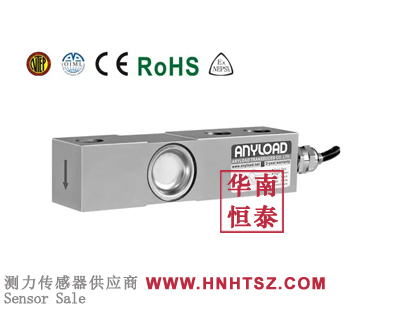

563YH-20000lb load cell

Shape:single-ended Shear Beam
Material:alloy steel construction
Load direction：compression
Model:563YH-100kg 563YH-200kg 563YH-300kg 563YH-500kg 563YH-750kg 563YH-1t 563YH-1.5t 563YH-2t 563YH-2.5t 563YH-3t 563YH-5t 563YH-10t 563YH-20t
Product description: 563YH-20000lb is an alloy steel cantilever beam weighing sensor designed for a variety of harsh environments. It is made of high quality alloy steel, has extremely high corrosion resistance and durabi
INQUIRY

Shenzhen Huanan Hengtai Industrial Co.,Ltd sale 563YH-20000lb is a cantilever beam weighing sensor, good linearity, high precision, because the strain gauge is attached to the web of the i-beam, and the base axis into 45 degrees of orientation, it only measures the principal stress corresponding to the shear stress, not affected by bending stress, so good linearity, high precision.

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【ANYLOAD load cell 563YH-20000lb information】
ANYLOAD load cell 563YH-20000lb is selling product in China, quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com

Note: The following information is for reference, Please refer to ANYLOAD version
ANYLOAD load cell 563YH-20000lb datasheet download：

ANYLOAD load cell 563YH-20000lb features：
563YH-20000lb is an alloy steel cantilever load cell designed for a variety of harsh environments. It is made of high quality alloy steel with extremely high corrosion resistance and durability, suitable for a variety of harsh environmental conditions.
Good linearity and high precision;
Simple structure, easy to seal, long-term stability, durable;
It is applied to the weight measurement of large tanks and hoppers, the measurement control of crane scales and automobile scales, to the batching system of mixing and distributing various raw materials, the automatic detection in the production process and the control of powder and particle feed quantity.

ANYLOAD load cell 563YH-20000lb Applications：

563YH-20000lb is a high precision and cost-effective compression weighing solution, very suitable for a variety of applications, for pressure measurement, can be used with a single sensor, can also be used with multiple sensors, easy to install, debugging.

ANYLOAD load cell 563YH-20000lb selection：

ANYLOAD load cell 563YH-20000lb series models：

563YH-100kg 563YH-200kg 563YH-300kg 563YH-500kg 563YH-750kg 563YH-1t 563YH-1.5t 563YH-2t 563YH-2.5t 563YH-3t 563YH-5t 563YH-10t 563YH-20t 563YH-100Lb 563YH-250Lb 563YH-500Lb 563YH-1Klb 563YH-1.5Klb 563YH-2Klb 563YH-2.5Klb 563YH-4Klb 563YH-SE5Klb 563YH-5Klb 563YH-10Klb 563YH-15Klb 563YH-20Klb

563YH-1000KG 563YH-1500kg 563YH-2000kg 563YH-2500kg 563YH-3000kg 563YH-5000kg 563YH-10000kg 563YH-20000kg

563YH-1000lb 563YH-1.5000lb 563YH-2000lb 563YH-2.5000lb 563YH-4000lb 563YH-SE5000lb 563YH-5000lb 563YH-10000lb 563YH-15000lb 563YH-20000lb
