CAS LOAD CELL

SB-20kgf load cell

Shape:S type point load cell
Nonlinearity:≤0.03% FS
Load direction：compression or tension
Model:SB-20kgf,SB-50kgf,SB-75kgf,SB-100kgf,SB-200kgf,SB-250kgf,SB-500kgf,SB-1tf,SB-2tf,
Product description: SB-20kgf is S type structure, can be used in tension and pressure; Single sensor can be used, also can be used with a number of sensors, easy to install, debugging, suitable for material testing machi
INQUIRY

Shenzhen Huanan Hengtai Industrial Co.,Ltd sale SB-20kgf s-shaped structure design, which can convert physical signals into electrical signals for accurate measurement, tension sensor, also known as resistance strain sensor, tension sensor has a simple structure, wide measurement range, high accuracy, and can adapt to various harsh conditions. for example, hook scale, belt scale, batching system, packaging scale, mechanical and electrical combined scale and special force measuring device, hook scale, machine scale, hopper scale and other types of electronic weighing equipment.

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【CAS load cell SB-20kgf information】
CAS load cell SB-20kgf is selling product in China, quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com

Note: The following information is for reference, Please refer to CAS version
CAS load cell SB-20kgf datasheet download：

CAS load cell SB-20kgf features：

Pull-pressure weighing sensor

Aluminum and steel are available

External installation of steel protective cover, effectively protect the sensor from external impact

Range: 20,50,75,100,200,250,500,1 K, 2 K

Four core shielded cable with polyurethane plug

Suitable for tension scale and tension testing machine

CAS load cell SB-20kgf Applications：

SB-20kgf is a high precision and cost-effective compression weighing solution, very suitable for a variety of applications, for pressure measurement, can be used with a single sensor, can also be used with multiple sensors, easy to install, debugging.

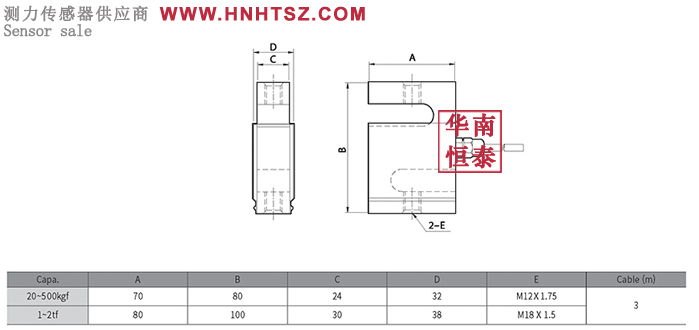

CAS load cell SB-20kgf selection：
