Chinese Shenzhen Huanan Hengtai Industrial Co.,Ltd sale LMB-A is a good sensor to meet the needs of customers more appropriately, and from the installation of the external structure, the screen discards the characteristics of the traditional process volume is too large, and turn to low-load surface, flat top and bottom design, so that the force sensor in the actual use of more convenient use and installation. In terms of measurement accuracy, it has a sensitive response and fast feedback, which meets the needs of micro force sensor in industrial control design.
【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【KYOWA load cell LMB-A information】
KYOWA load cell LMB-A is selling product in China, quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com
Note: The following information is for reference, Please refer to KYOWA version
KYOWA load cell LMB-A datasheet download：

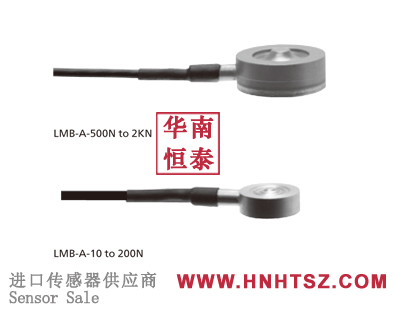

KYOWA load cell LMB-A features：
●Material: Stainless steel
●Rated Capacities: 10N，50N,100N,200N,500N,1kN,2kN
●Sensitivity：1.4 mV/V or more but 10N: 0.5 mV/V or more
●Safe Overload: 150%
●Nonlinearity Within ±0.5% RO
●Hysteresis Within ±0.5% RO
●Repeatability Within ±0.3% RO
●Safe Temperature -10 to 80°C (Non-condensing)
●Compensated Temperature 0 to 70°C (Non-condensing)
●Safe Excitation 7 V AC or DC
●Recommended Excitation 1 to 5 V AC or DC
●Input Resistance 350 Ω±2.5%
●Output Resistance 350 Ω±2.5%
●Cable 4-conductor (0.035 mm2) vinyl shielded cable,1.7 mm diameter by 2 m long, bared at the tip(Shield wire is not connected to the case.)
