KYOWA load cell

LUH-2TF load cell

Shape:Enclosed structure with inert gas inside
Nonlinearity: ±0.02%RO or less
Direction of force: high-precision tensile compression dual-purpose load sensor

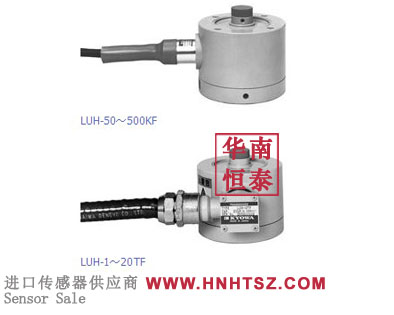

Model:LUH-50KF,LUH-100KF,LUH-200KF,LUH-500KF,LUH-1TF,LUH-2TF,LUH-5TF,LUH-10TF,LUH-20TF
Product description: LUH-2TF use for measuring tension or compression loads with an airtight seal, filled with inert gas and excellent zero float characteristics.
INQUIRY

China Shenzhen Huanan Hengtai Industrial Co.,Ltd sale LUH-2TF the sensor uses advanced measurement technology to accurately capture changes in tension and pressure in complex physical environments. whether under high or low load conditions, the sensor can maintain a high degree of measurement accuracy, providing users with reliable data support. in addition, the sensor has excellent stability and can maintain measurement accuracy for a long time, ensuring data consistency and reliability.

Inquiry for Quotation→E-mail:sales@hnhtsz.com

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【KYOWA load cell LUH-2TF information】

Note: The following information is for reference, Please refer to KYOWA version
KYOWA load cell LUH-2TF datasheet download：

KYOWA load cell LUH-2TF features：

Rated Capacity	See table below.
Nonlinearity	Within ±0.02% RO
Hysteresis	Within ±0.02% RO
Repeatability	0.02% RO or less
Zero Float	0.02% RO or less for 500 N to 5 kN
Rated Output	2 mV/V ±0.1%

Environmental Characteristics
Safe Temperature				-35 to 80°C
Compensated Temperature				-10 to 60°C
Temperature Effect on Zero				Within ±0.0015% RO/°C
Temperature Effect on Output				Within ±0.001%/°C
Electrical Characteristics
Safe Excitation			20 V AC or DC
Recommended Excitation			1 to 10 V AC or DC
Input Resistance			350 Ω±0.5%
Output Resistance			350 Ω±0.5%
Cable 6-conductor (0.5 mm2) chloroprene shielded cable,
9.5 mm diameter by 5 m long, with Crimp-style terminals for 4 mm
(Shield wire is not connected to the case.)
Mechanical Properties
Safe Overloads		150%
Natural Frequencies		See table below.
Weight		See table below.
Others		Drop prevention stopper mountable (*)
Ultimate Overload		1000% (500 N to 5 kN)
