China Shenzhen Huanan Hengtai Industrial Co.,Ltd sale LUH-50KF not only has excellent performance, but also is simple to operate and easy to install, and users can complete the installation and debugging of the sensor through simple steps. at the same time, the sensor also has good compatibility and can be used with a variety of measurement equipment and control systems to meet the needs of different users.
Inquiry for Quotation→E-mail:sales@hnhtsz.com
【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation

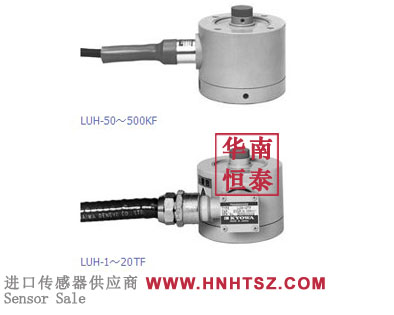

【KYOWA load cell LUH-50KF information】
Note: The following information is for reference, Please refer to KYOWA version
KYOWA load cell LUH-50KF datasheet download：
KYOWA load cell LUH-50KF features： Rated Capacity See table below. Nonlinearity Within ±0.02% RO Hysteresis Within ±0.02% RO Repeatability 0.02% RO or less Zero Float 0.02% RO or less for 500 N to 5 kN Rated Output 2 mV/V ±0.1% Environmental Characteristics Safe Temperature -35 to 80°C Compensated Temperature -10 to 60°C Temperature Effect on Zero Within ±0.0015% RO/°C Temperature Effect on Output Within ±0.001%/°C Electrical Characteristics Safe Excitation 20 V AC or DC Recommended Excitation 1 to 10 V AC or DC Input Resistance 350 Ω±0.5% Output Resistance 350 Ω±0.5% Cable 6-conductor (0.5 mm2) chloroprene shielded cable, 9.5 mm diameter by 5 m long, with Crimp-style terminals for 4 mm (Shield wire is not connected to the case.) Mechanical Properties Safe Overloads 150% Natural Frequencies See table below. Weight See table below. Others Drop prevention stopper mountable (*) Ultimate Overload 1000% (500 N to 5 kN)
