ANYLOAD SIGNAL AMPLIFIER

A2A-F Load Cell Amplifiers

Aluminium alloy explosion-proof case
24 bit high precision converter and high speed microprocessor
Output signal 0±10V or 4-20mA is optional
Applicable to all kinds of strain gauge bridge load cells, such as tension, compression, torque, etc.
Product description: 【Shenzhen Huanan Hengtai Industrial Co. LTD】sale ANYLOAD A2A-F series strain gage amplifiers provide load cell and transducer signal conditioning. The A2A-F strain gage amplifiers are DC-powered ampl
INQUIRY

【Shenzhen Huanan Hengtai Industrial Co. LTD】sale ANYLOAD A2A-F series strain gage amplifiers provide load cell and transducer signal conditioning. The A2A-F strain gage amplifiers are DC-powered amplifiers that can drive up to 2 x 350Ω load cells connected directly. It can also drive several load cells up to 4 x 350Ω load cells or 8 x 700Ω load cells through a junction box. Equipped with individually adjustable resistors, the A2A-F strain gage amplifiers are watertight with an aluminum casting enclosure and have a wide input signal from 0±36mV and an output signal of 0±10V or 4-20mA. The A2A-F amplifier is now equipped with two options of excitation voltages (5VDC or 12VDC) to comply with the desired requirements in various applications.

Note: The content of this product page is for reference only, and ANYLOAD manufacturer's information shall prevail

ANYLOAD A2A-F Load Cell Amplifiers

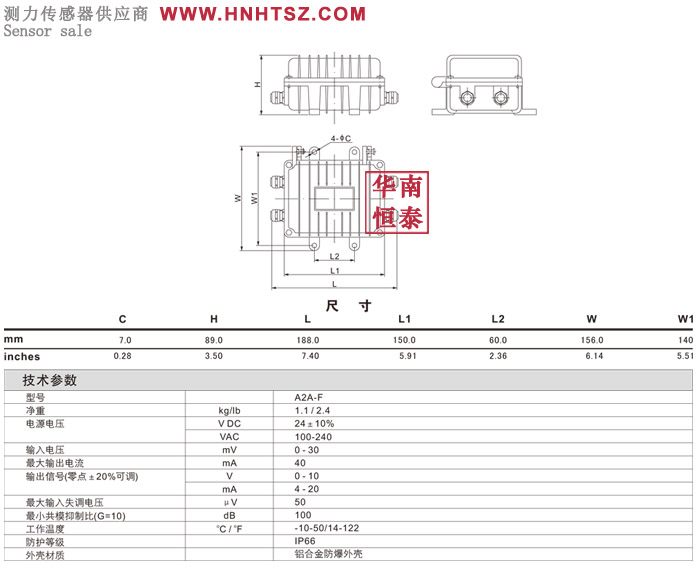

ANYLOAD load cell amplifiers A2A-F specifications:

Aluminium alloy explosion-proof case

Load Cell Type All strain gage types

Capacity up to 2x350Ω directly connected or 4x350Ω or 8x700Ω or 8x350Ω through a junction box

Power Supply 24V DC ± 10%

Input Range 0±36mV

Maximum Power Voltage (DC) 30V, 2.5A

Output Signal (Voltage) 0V±10V

Output Signal (Current) 4mA-20mA

Enclosure Material Aluminum casting
