ANYLOAD SIGNAL AMPLIFIER

A2P-D2 Load Cell Amplifiers

High precision and high stability at low temperature
24 bit high precision converter and high speed microprocessor
Output signal 0±10V or 4-20mA is optional
Applicable to all kinds of strain gauge bridge load cells, such as tension, compression, torque, etc.
Product description: 【Shenzhen Huanan Hengtai Industrial Co. LTD】sale ANYLOAD A2P-D2 series strain gage amplifiers provide load cell and transducer signal conditioning. The A2P-D2 strain gage amplifiers are DC-powered am
INQUIRY

【Shenzhen Huanan Hengtai Industrial Co. LTD】sale ANYLOAD A2P-D2 series strain gage amplifiers provide load cell and transducer signal conditioning. The A2P-D2 strain gage amplifiers are DC-powered amplifiers that can drive up to 2 x 350Ω load cells connected directly. It can also drive several load cells up to 4 x 350Ω load cells or 8 x 700Ω load cells through a junction box. Equipped with individually adjustable resistors, the A2P-D2 strain gage amplifiers are watertight with an aluminum casting enclosure and have a wide input signal from 0±36mV and an output signal of 0±10V or 4-20mA. The A2P-D2 amplifier is now equipped with two options of excitation voltages (5VDC or 12VDC) to comply with the desired requirements in various applications.

Note: The content of this product page is for reference only, and ANYLOAD manufacturer's information shall prevail

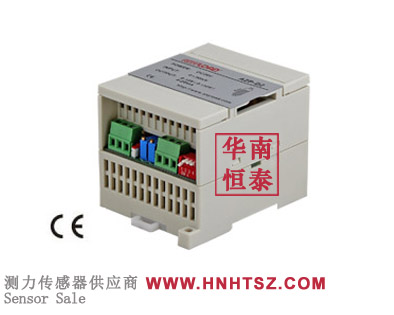

ANYLOAD A2P-D2 Load Cell Amplifiers

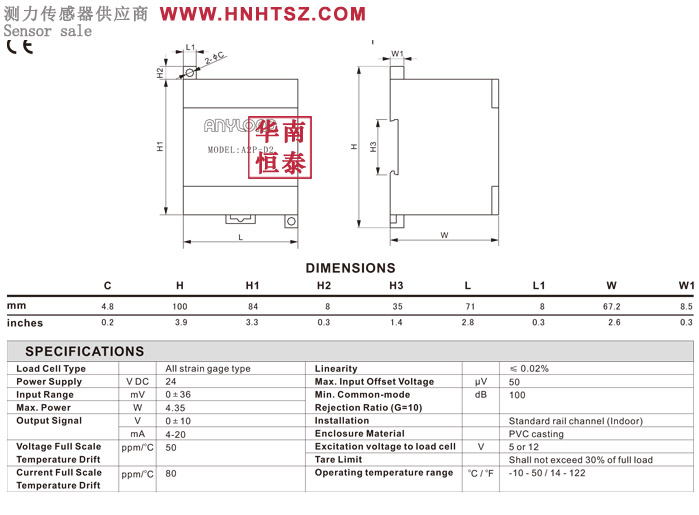

ANYLOAD load cell amplifiers A2P-D2 specifications:

Load Cell Type All strain gage types

Capacity up to 2x350Ω directly connected or 4x350Ω or 8x700Ω or 8x350Ω through a junction box

Power Supply 24V DC ± 10%

Input Range 0±36mV

Maximum Power Voltage (DC) 30V, 2.5A

Output Signal (Voltage) 0V±10V

Output Signal (Current) 4mA-20mA

Enclosure Material Aluminum casting

Operating Temperature Range -10 to 50°C or 14 to 122°F
