ANYLOAD Load Cell

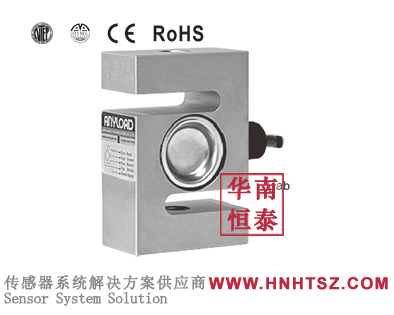

101BH-1000kg load cell

Shape: S Type load cell
Material: Alloy Steel
Load direction：Compression & tention
Model:101BH-50kg 101BH-100kg 101BH-200kg 101BH-300kg 101BH-500kg 101BH-1t 101BH-SE2t 101BH-2t 101BH-5t 101BH-10t
Product description: 101BH-1000kg is a kind of universal material testing machine, which can be used either single or multiple at the same time. It is easy to install and debug. Application: Mechanical scale transformatio
INQUIRY

Chinese Shenzhen Huanan Hengtai Industrial Co.,Ltd sale 101BH-1000kgis S-type structure design, mainly used for tensile force measurement, tension sensor is a series of weighing sensors. The tension sensor has simple structure, wide measuring range and high precision. When used, it needs to be kept light and easy to avoid vibration. Otherwise, Will affect the measurement data, due to the special structure of the structure, suitable for hook scales, belt scales, batching systems, packaging scales, electromechanical combination scales and special force measuring devices, hook scales, machine scales, hopper scales, etc. Electronic weighing equipment.

Note: The following information is for reference, Please refer to ANYLOAD version

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【ANYLOAD load cell 101BH-1000kg information】
ANYLOAD load cell 101BH-1000kg is hot selling product in China, in stock,manufacturers supply, quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com
ANYLOAD load cell 101BH-1000kg datasheet download：

ANYLOAD load cell 101BH-1000kg features：

●Material: Alloy steel

●Rated Capacities: 50kg, 100kg, 200kg, 300kg, 500kg, 1t, SE2t, 2t, 3t, 5t, 10t

●Full Scale Output: 2mV/V ± 1%

●Safe Overload: 150%

● Breaking Overload: 300%

●IP Rating: IP67

●NTEP 1:4 500 Class III, Single Cell certified from 100lb-500lb

●NTEP 1:5 500 Class III, Single Cell certified from 1Klb-20Klb

● OIML MAA C3, Y=17 000 certified from 200kg-1.5t

● OIML MAA C4.5, Y=14 000 certified from 2t-10t

●CE, RoHS and Ex certified

●Measurement Ukraine certified

ANYLOAD load cell 101BH-1000kg dimension：

ANYLOAD load cell 101BH-1000kg series models：

101BH-50kg 101BH-100kg 101BH-200kg 101BH-300kg 101BH-500kg 101BH-1t 101BH-SE2t 101BH-2t 101BH-5t 101BH-10t

101BH-1000kg 101BH-SE2000kg 101BH-2000kg 101BH-5000kg 101BH-10000kg

101BH-I-50kg 101BH-I-100kg 101BH-I-200kg 101BH-I-300kg 101BH-I-500kg 101BH-I-1t 101BH-I-2t 101BH-I-5t 101BH-I-10t

Shenzhen Huanan Hengtai Industrial Co.,Ltd supply 101BH-1000kg is a rare weighing sensor. It has an excellent texture, a wide and plump layout, and a clean and crisp edge line. It reveals the excellent quality of the weighing sensor. Its stable performance, tension measurement and compression measurement are completed in one piece, making it one of the recommended multi-functional sensors.

If you want to know more about 101BH-1000kg price, 101BH-1000kg delivery time, 101BH-1000kg manufacturer, 101BH-1000kg product information, 101BH-1000kg product specification, 101BH-1000kg technical parameters, 101BH-1000kg installation and debugging, 101BH-1000kg wiring mode, please contact E-mail:sales@hnhtsz.com
