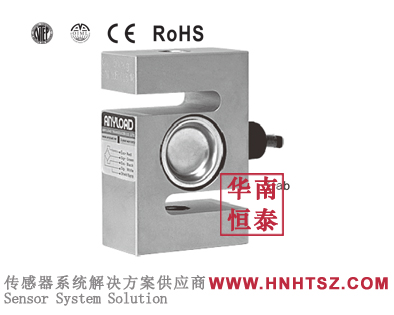

ANYLOAD Load Cell

101BH-10t load cell

Shape: S Type load cell
Material: Alloy Steel
Load direction：Compression & tention
Model:101BH-50kg 101BH-100kg 101BH-200kg 101BH-300kg 101BH-500kg 101BH-1t 101BH-SE2t 101BH-2t 101BH-5t 101BH-10t
Product description: 101BH-10t is a kind of universal material testing machine, which can be used either single or multiple at the same time. It is easy to install and debug. Application: Mechanical scale transformation
INQUIRY

Chinese Shenzhen Huanan Hengtai Industrial Co.,Ltd sale 101BH-10t is comparatively delicate, quality conscience, price concessions, durability, texture is very good, design to play on the simple and practical elements, whether it is tension measurement, pressure measurement or other complex weighing design can take into account.

Note: The following information is for reference, Please refer to ANYLOAD version

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【ANYLOAD load cell 101BH-10t information】
ANYLOAD load cell 101BH-10t is hot selling product in China, in stock,manufacturers supply, quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com
ANYLOAD load cell 101BH-10t datasheet download：

ANYLOAD load cell 101BH-10t features：

●Material: Alloy steel

●Rated Capacities: 50kg, 100kg, 200kg, 300kg, 500kg, 1t, SE2t, 2t, 3t, 5t, 10t

●Full Scale Output: 2mV/V ± 1%

●Safe Overload: 150%

● Breaking Overload: 300%

●IP Rating: IP67

●NTEP 1:4 500 Class III, Single Cell certified from 100lb-500lb

●NTEP 1:5 500 Class III, Single Cell certified from 1Klb-20Klb

● OIML MAA C3, Y=17 000 certified from 200kg-1.5t

● OIML MAA C4.5, Y=14 000 certified from 2t-10t

●CE, RoHS and Ex certified

●Measurement Ukraine certified

ANYLOAD load cell 101BH-10t dimension：

ANYLOAD load cell 101BH-10t series models：

101BH-50kg 101BH-100kg 101BH-200kg 101BH-300kg 101BH-500kg 101BH-1t 101BH-SE2t 101BH-2t 101BH-5t 101BH-10t

101BH-1000kg 101BH-SE2000kg 101BH-2000kg 101BH-5000kg 101BH-10000kg

101BH-I-50kg 101BH-I-100kg 101BH-I-200kg 101BH-I-300kg 101BH-I-500kg 101BH-I-1t 101BH-I-2t 101BH-I-5t 101BH-I-10t

Shenzhen Huanan Hengtai Industrial Co.,Ltd supply 101BH-10t is to complete the conversion of external forces into electrical signals.The sensor is made of High quality metal and sealed with plastic.It is suitable for various electronic weighing equipment such as hook scale, belt scale, batching system, packing scale, electromechanical combination scale and special force measuring device, hook scale, machine change scale and hopper scale.

If you want to know more about 101BH-10t price, 101BH-10t delivery time, 101BH-10t manufacturer, 101BH-10t product information, 101BH-10t product specification, 101BH-10t technical parameters, 101BH-10t installation and debugging, 101BH-10t wiring mode, please contact E-mail:sales@hnhtsz.com
