ANYLOAD Load Cell

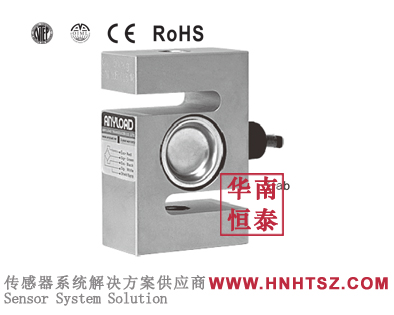

101BH-2000kg load cell

Shape: S Type load cell
Material: Alloy Steel
Load direction：Compression & tention
Model:101BH-50kg 101BH-100kg 101BH-200kg 101BH-300kg 101BH-500kg 101BH-1t 101BH-SE2t 101BH-2t 101BH-5t 101BH-10t
Product description: 101BH-2000kg is a kind of universal material testing machine, which can be used either single or multiple at the same time. It is easy to install and debug. Application: Mechanical scale transformatio
INQUIRY

Chinese Shenzhen Huanan Hengtai Industrial Co.,Ltd sale 101BH-2000kgis a universal weighing sensor, specially used for tension measurement and compression measurement, S-type design, through structural amplitude increase, makes the performance of the force sensor improved, the transmission of force value is more sensitive. Whether the upper part or the lower part is planar designed to facilitate the placement and balance of the force sensor so that the process of force measurement results in more accurate and speed, reduce the loss of data in the case of high force measurement, so this weighing sensor from the workmanship, structure, material and performance, are Especially recommended.

Note: The following information is for reference, Please refer to ANYLOAD version

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【ANYLOAD load cell 101BH-2000kg information】
ANYLOAD load cell 101BH-2000kg is hot selling product in China, in stock,manufacturers supply, quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com
ANYLOAD load cell 101BH-2000kg datasheet download：

ANYLOAD load cell 101BH-2000kg features：

●Material: Alloy steel

●Rated Capacities: 50kg, 100kg, 200kg, 300kg, 500kg, 1t, SE2t, 2t, 3t, 5t, 10t

●Full Scale Output: 2mV/V ± 1%

●Safe Overload: 150%

● Breaking Overload: 300%

●IP Rating: IP67

●NTEP 1:4 500 Class III, Single Cell certified from 100lb-500lb

●NTEP 1:5 500 Class III, Single Cell certified from 1Klb-20Klb

● OIML MAA C3, Y=17 000 certified from 200kg-1.5t

● OIML MAA C4.5, Y=14 000 certified from 2t-10t

●CE, RoHS and Ex certified

●Measurement Ukraine certified

ANYLOAD load cell 101BH-2000kg dimension：

ANYLOAD load cell 101BH-2000kg series models：

101BH-50kg 101BH-100kg 101BH-200kg 101BH-300kg 101BH-500kg 101BH-1t 101BH-SE2t 101BH-2t 101BH-5t 101BH-10t

101BH-1000kg 101BH-SE2000kg 101BH-2000kg 101BH-5000kg 101BH-10000kg

101BH-I-50kg 101BH-I-100kg 101BH-I-200kg 101BH-I-300kg 101BH-I-500kg 101BH-I-1t 101BH-I-2t 101BH-I-5t 101BH-I-10t

Shenzhen Huanan Hengtai Industrial Co.,Ltd supply 101BH-2000kg is a high-quality weighing sensor. The outer shell is cleaned, polished, polished and antiseptic. It makes the weighing sensor show bright color and beautiful arc line, increases the texture of the weighing sensor, and makes the weighing sensor corrosion-resistant, pollution-resistant, waterproof and moisture-proof by treating the outer shell. Excellent overall performance, exquisite workmanship and long service life.

If you want to know more about 101BH-2000kg price, 101BH-2000kg delivery time, 101BH-2000kg manufacturer, 101BH-2000kg product information, 101BH-2000kg product specification, 101BH-2000kg technical parameters, 101BH-2000kg installation and debugging, 101BH-2000kg wiring mode, please contact E-mail:sales@hnhtsz.com
