ANYLOAD Load Cell

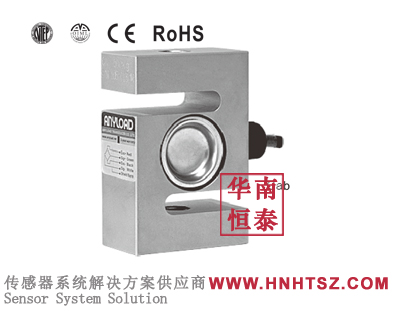

101BH-5000kg load cell

Shape: S Type load cell
Material: Alloy Steel
Load direction：Compression & tention
Model:101BH-50kg 101BH-100kg 101BH-200kg 101BH-300kg 101BH-500kg 101BH-1t 101BH-SE2t 101BH-2t 101BH-5t 101BH-10t
Product description: 101BH-5000kg is a kind of universal material testing machine, which can be used either single or multiple at the same time. It is easy to install and debug. Application: Mechanical scale transformatio
INQUIRY

Chinese Shenzhen Huanan Hengtai Industrial Co.,Ltd sale 101BH-5000kgis unique intentions, selection of fine metal materials, coupled with improved process of glue seals, everywhere reveals excellent texture, is the international level of meticulous forging, high precision, low cost is the ideal choice for weighing systems and other OEM applications.

Note: The following information is for reference, Please refer to ANYLOAD version

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【ANYLOAD load cell 101BH-5000kg information】
ANYLOAD load cell 101BH-5000kg is hot selling product in China, in stock,manufacturers supply, quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com
ANYLOAD load cell 101BH-5000kg datasheet download：

ANYLOAD load cell 101BH-5000kg features：

●Material: Alloy steel

●Rated Capacities: 50kg, 100kg, 200kg, 300kg, 500kg, 1t, SE2t, 2t, 3t, 5t, 10t

●Full Scale Output: 2mV/V ± 1%

●Safe Overload: 150%

● Breaking Overload: 300%

●IP Rating: IP67

●NTEP 1:4 500 Class III, Single Cell certified from 100lb-500lb

●NTEP 1:5 500 Class III, Single Cell certified from 1Klb-20Klb

● OIML MAA C3, Y=17 000 certified from 200kg-1.5t

● OIML MAA C4.5, Y=14 000 certified from 2t-10t

●CE, RoHS and Ex certified

●Measurement Ukraine certified

ANYLOAD load cell 101BH-5000kg dimension：

ANYLOAD load cell 101BH-5000kg series models：

101BH-50kg 101BH-100kg 101BH-200kg 101BH-300kg 101BH-500kg 101BH-1t 101BH-SE2t 101BH-2t 101BH-5t 101BH-10t

101BH-1000kg 101BH-SE2000kg 101BH-2000kg 101BH-5000kg 101BH-10000kg

101BH-I-50kg 101BH-I-100kg 101BH-I-200kg 101BH-I-300kg 101BH-I-500kg 101BH-I-1t 101BH-I-2t 101BH-I-5t 101BH-I-10t

Shenzhen Huanan Hengtai Industrial Co.,Ltd supply 101BH-5000kg is high accuracy, wide measurement range, long life, simple structure, good frequency response characteristics, can work in adverse conditions, easy to achieve miniaturization, integration and variety diversification.

If you want to know more about 101BH-5000kg price, 101BH-5000kg delivery time, 101BH-5000kg manufacturer, 101BH-5000kg product information, 101BH-5000kg product specification, 101BH-5000kg technical parameters, 101BH-5000kg installation and debugging, 101BH-5000kg wiring mode, please contact E-mail:sales@hnhtsz.com
