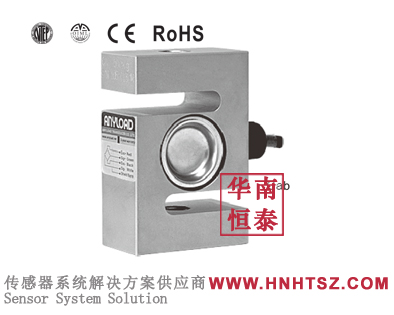

ANYLOAD Load Cell

101BH-300kg load cell

Shape: S Type load cell
Material: Alloy Steel
Load direction：Compression & tention
Model:101BH-50kg 101BH-100kg 101BH-200kg 101BH-300kg 101BH-500kg 101BH-1t 101BH-SE2t 101BH-2t 101BH-5t 101BH-10t
Product description: 101BH-300kg is a kind of universal material testing machine, which can be used either single or multiple at the same time. It is easy to install and debug. Application: Mechanical scale transformation
INQUIRY

Chinese Shenzhen Huanan Hengtai Industrial Co.,Ltd sale 101BH-300kgis easy to install, high precision, stable performance, glue sealing, dust-proof, moisture-proof, compact structure, fine workmanship, simple installation method, can meet the needs of many electronic weighing.

Note: The following information is for reference, Please refer to ANYLOAD version

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【ANYLOAD load cell 101BH-300kg information】
ANYLOAD load cell 101BH-300kg is hot selling product in China, in stock,manufacturers supply, quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com
ANYLOAD load cell 101BH-300kg datasheet download：

ANYLOAD load cell 101BH-300kg features：

●Material: Alloy steel

●Rated Capacities: 50kg, 100kg, 200kg, 300kg, 500kg, 1t, SE2t, 2t, 3t, 5t, 10t

●Full Scale Output: 2mV/V ± 1%

●Safe Overload: 150%

● Breaking Overload: 300%

●IP Rating: IP67

●NTEP 1:4 500 Class III, Single Cell certified from 100lb-500lb

●NTEP 1:5 500 Class III, Single Cell certified from 1Klb-20Klb

● OIML MAA C3, Y=17 000 certified from 200kg-1.5t

● OIML MAA C4.5, Y=14 000 certified from 2t-10t

●CE, RoHS and Ex certified

●Measurement Ukraine certified

ANYLOAD load cell 101BH-300kg dimension：

ANYLOAD load cell 101BH-300kg series models：

101BH-50kg 101BH-100kg 101BH-200kg 101BH-300kg 101BH-500kg 101BH-1t 101BH-SE2t 101BH-2t 101BH-5t 101BH-10t

101BH-1000kg 101BH-SE2000kg 101BH-2000kg 101BH-5000kg 101BH-10000kg

101BH-I-50kg 101BH-I-100kg 101BH-I-200kg 101BH-I-300kg 101BH-I-500kg 101BH-I-1t 101BH-I-2t 101BH-I-5t 101BH-I-10t

Shenzhen Huanan Hengtai Industrial Co.,Ltd supply 101BH-300kg is a rare weighing sensor. It has an excellent texture, a wide and plump layout, and a clean and crisp edge line. It reveals the excellent quality of the weighing sensor. Its stable performance, tension measurement and compression measurement are completed in one piece, making it one of the recommended multi-functional sensors.

If you want to know more about 101BH-300kg price, 101BH-300kg delivery time, 101BH-300kg manufacturer, 101BH-300kg product information, 101BH-300kg product specification, 101BH-300kg technical parameters, 101BH-300kg installation and debugging, 101BH-300kg wiring mode, please contact E-mail:sales@hnhtsz.com
