ANYLOAD Load Cell

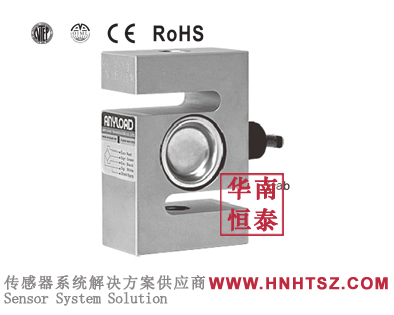

101BH-500kg load cell

Shape: S Type load cell
Material: Alloy Steel
Load direction：Compression & tention
Model:101BH-50kg 101BH-100kg 101BH-200kg 101BH-300kg 101BH-500kg 101BH-1t 101BH-SE2t 101BH-2t 101BH-5t 101BH-10t
Product description: 101BH-500kg is a kind of universal material testing machine, which can be used either single or multiple at the same time. It is easy to install and debug. Application: Mechanical scale transformation
INQUIRY

Chinese Shenzhen Huanan Hengtai Industrial Co.,Ltd sale 101BH-500kgis structure belongs to the S-type design. The S-type tension pressure sensor is the most commonly used pull and pressure sensor in industrial applications. It is widely used in water conservancy and hydropower, railway transportation, intelligent building, production automation, aerospace, military, petrochemical, oil well, Power, ships, machine tools, pipelines and many other industries. The sensor is made of High quality metal and sealed with sealant for easy installation and convenient use. Applicable to all kinds of electronic weighing equipment suitable for hook scales, belt scales, batching systems, packaging scales, electromechanical combination scales and special force measuring devices, hook scales, machine scales, hopper scales, etc.

Note: The following information is for reference, Please refer to ANYLOAD version

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【ANYLOAD load cell 101BH-500kg information】
ANYLOAD load cell 101BH-500kg is hot selling product in China, in stock,manufacturers supply, quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com
ANYLOAD load cell 101BH-500kg datasheet download：

ANYLOAD load cell 101BH-500kg features：

●Material: Alloy steel

●Rated Capacities: 50kg, 100kg, 200kg, 300kg, 500kg, 1t, SE2t, 2t, 3t, 5t, 10t

●Full Scale Output: 2mV/V ± 1%

●Safe Overload: 150%

● Breaking Overload: 300%

●IP Rating: IP67

●NTEP 1:4 500 Class III, Single Cell certified from 100lb-500lb

●NTEP 1:5 500 Class III, Single Cell certified from 1Klb-20Klb

● OIML MAA C3, Y=17 000 certified from 200kg-1.5t

● OIML MAA C4.5, Y=14 000 certified from 2t-10t

●CE, RoHS and Ex certified

●Measurement Ukraine certified

ANYLOAD load cell 101BH-500kg dimension：

ANYLOAD load cell 101BH-500kg series models：

101BH-50kg 101BH-100kg 101BH-200kg 101BH-300kg 101BH-500kg 101BH-1t 101BH-SE2t 101BH-2t 101BH-5t 101BH-10t

101BH-1000kg 101BH-SE2000kg 101BH-2000kg 101BH-5000kg 101BH-10000kg

101BH-I-50kg 101BH-I-100kg 101BH-I-200kg 101BH-I-300kg 101BH-I-500kg 101BH-I-1t 101BH-I-2t 101BH-I-5t 101BH-I-10t

Shenzhen Huanan Hengtai Industrial Co.,Ltd supply 101BH-500kg is unique intentions, selection of fine metal materials, coupled with improved process of glue seals, everywhere reveals excellent texture, is the international level of meticulous forging, high precision, low cost is the ideal choice for weighing systems and other OEM applications.

If you want to know more about 101BH-500kg price, 101BH-500kg delivery time, 101BH-500kg manufacturer, 101BH-500kg product information, 101BH-500kg product specification, 101BH-500kg technical parameters, 101BH-500kg installation and debugging, 101BH-500kg wiring mode, please contact E-mail:sales@hnhtsz.com
