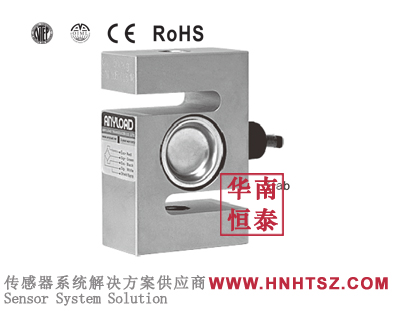

ANYLOAD Load Cell

101BH-5t load cell

Shape: S Type load cell
Material: Alloy Steel
Load direction：Compression & tention
Model:101BH-50kg 101BH-100kg 101BH-200kg 101BH-300kg 101BH-500kg 101BH-1t 101BH-SE2t 101BH-2t 101BH-5t 101BH-10t
Product description: 101BH-5t is a kind of universal material testing machine, which can be used either single or multiple at the same time. It is easy to install and debug. Application: Mechanical scale transformation (m
INQUIRY

Chinese Shenzhen Huanan Hengtai Industrial Co.,Ltd sale 101BH-5tis a kind of product which carries on the advanced technology of foreign countries for many years, so it has won more Designers'favor in the design of automatic force measurement design. This is also the reason why it has become more used in the category of weighing sensors. Seiko production, clean shell material, solid and thoughtful sealing, makes the nature It is stable and durable, and can be used for tension measurement and compression measurement.

Note: The following information is for reference, Please refer to ANYLOAD version

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【ANYLOAD load cell 101BH-5t information】
ANYLOAD load cell 101BH-5t is hot selling product in China, in stock,manufacturers supply, quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com
ANYLOAD load cell 101BH-5t datasheet download：

ANYLOAD load cell 101BH-5t features：

●Material: Alloy steel

●Rated Capacities: 50kg, 100kg, 200kg, 300kg, 500kg, 1t, SE2t, 2t, 3t, 5t, 10t

●Full Scale Output: 2mV/V ± 1%

●Safe Overload: 150%

● Breaking Overload: 300%

●IP Rating: IP67

●NTEP 1:4 500 Class III, Single Cell certified from 100lb-500lb

●NTEP 1:5 500 Class III, Single Cell certified from 1Klb-20Klb

● OIML MAA C3, Y=17 000 certified from 200kg-1.5t

● OIML MAA C4.5, Y=14 000 certified from 2t-10t

●CE, RoHS and Ex certified

●Measurement Ukraine certified

ANYLOAD load cell 101BH-5t dimension：

ANYLOAD load cell 101BH-5t series models：

101BH-50kg 101BH-100kg 101BH-200kg 101BH-300kg 101BH-500kg 101BH-1t 101BH-SE2t 101BH-2t 101BH-5t 101BH-10t

101BH-1000kg 101BH-SE2000kg 101BH-2000kg 101BH-5000kg 101BH-10000kg

101BH-I-50kg 101BH-I-100kg 101BH-I-200kg 101BH-I-300kg 101BH-I-500kg 101BH-I-1t 101BH-I-2t 101BH-I-5t 101BH-I-10t

Shenzhen Huanan Hengtai Industrial Co.,Ltd supply 101BH-5t is high accuracy, wide measurement range, long life, simple structure, good frequency response characteristics, can work in adverse conditions, easy to achieve miniaturization, integration and variety diversification.

If you want to know more about 101BH-5t price, 101BH-5t delivery time, 101BH-5t manufacturer, 101BH-5t product information, 101BH-5t product specification, 101BH-5t technical parameters, 101BH-5t installation and debugging, 101BH-5t wiring mode, please contact E-mail:sales@hnhtsz.com
