ANYLOAD Load Cell

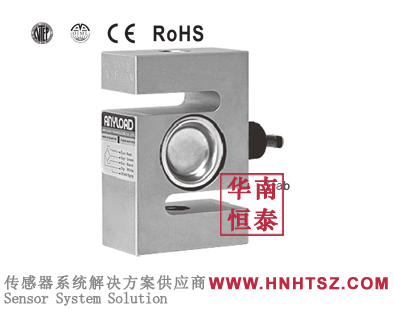

101BH-SE2t load cell

Shape: S Type load cell
Material: Alloy Steel
Load direction：Compression & tention
Model:101BH-50kg 101BH-100kg 101BH-200kg 101BH-300kg 101BH-500kg 101BH-1t 101BH-SE2t 101BH-2t 101BH-5t 101BH-10t
Product description: 101BH-SE2t is a kind of universal material testing machine, which can be used either single or multiple at the same time. It is easy to install and debug. Application: Mechanical scale transformation
INQUIRY

Chinese Shenzhen Huanan Hengtai Industrial Co.,Ltd sale 101BH-SE2tis easy to install, high precision, stable performance, glue sealing, dust-proof, moisture-proof, compact structure, fine workmanship, simple installation method, can meet the needs of many electronic weighing.

Note: The following information is for reference, Please refer to ANYLOAD version

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【ANYLOAD load cell 101BH-SE2t information】
ANYLOAD load cell 101BH-SE2t is hot selling product in China, in stock,manufacturers supply, quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com
ANYLOAD load cell 101BH-SE2t datasheet download：

ANYLOAD load cell 101BH-SE2t features：

●Material: Alloy steel

●Rated Capacities: 50kg, 100kg, 200kg, 300kg, 500kg, 1t, SE2t, 2t, 3t, 5t, 10t

●Full Scale Output: 2mV/V ± 1%

●Safe Overload: 150%

● Breaking Overload: 300%

●IP Rating: IP67

●NTEP 1:4 500 Class III, Single Cell certified from 100lb-500lb

●NTEP 1:5 500 Class III, Single Cell certified from 1Klb-20Klb

● OIML MAA C3, Y=17 000 certified from 200kg-1.5t

● OIML MAA C4.5, Y=14 000 certified from 2t-10t

●CE, RoHS and Ex certified

●Measurement Ukraine certified

ANYLOAD load cell 101BH-SE2t dimension：

ANYLOAD load cell 101BH-SE2t series models：

101BH-50kg 101BH-100kg 101BH-200kg 101BH-300kg 101BH-500kg 101BH-1t 101BH-SE2t 101BH-2t 101BH-5t 101BH-10t

101BH-1000kg 101BH-SE2000kg 101BH-2000kg 101BH-5000kg 101BH-10000kg

101BH-I-50kg 101BH-I-100kg 101BH-I-200kg 101BH-I-300kg 101BH-I-500kg 101BH-I-1t 101BH-I-2t 101BH-I-5t 101BH-I-10t

Shenzhen Huanan Hengtai Industrial Co.,Ltd supply 101BH-SE2t is a universal structure, sealed, cable-type output, output signal of a variety of optional (voltage/current), widely used in automation equipment for weighing or force measurement, is a force-measuring type of weighing sensor rare excellent recommendations, including hook scale, belt scale, batching system, packaging scale, mechanical and electrical scale and Special weighing device, hook scale, machine scale, hopper scale and other electronic weighing equipment.

If you want to know more about 101BH-SE2t price, 101BH-SE2t delivery time, 101BH-SE2t manufacturer, 101BH-SE2t product information, 101BH-SE2t product specification, 101BH-SE2t technical parameters, 101BH-SE2t installation and debugging, 101BH-SE2t wiring mode, please contact E-mail:sales@hnhtsz.com
