ANYLOAD Load Cell

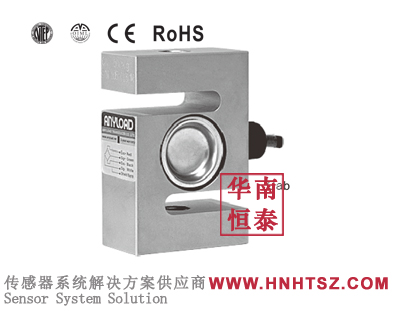

101BH-1t load cell

Shape: S Type load cell
Material: Alloy Steel
Load direction：Compression & tention
Model:101BH-50kg 101BH-100kg 101BH-200kg 101BH-300kg 101BH-500kg 101BH-1t 101BH-SE2t 101BH-2t 101BH-5t 101BH-10t
Product description: 101BH-1t is a kind of universal material testing machine, which can be used either single or multiple at the same time. It is easy to install and debug. Application: Mechanical scale transformation (m
INQUIRY

Chinese Shenzhen Huanan Hengtai Industrial Co.,Ltd sale 101BH-1tis using resistance strain type weighing sensor principle of work, under the effect of external force, the elastomer (elastic element, sensitive beam) can produce elastic deformation, make its surface of the paste resistance strain gauge (cell) also with deformation and deformation, the resistance strain gauge, it will become bigger or smaller, and then through the corresponding measurement circuit to convert the resistance to electrical signals (voltage or current).

Note: The following information is for reference, Please refer to ANYLOAD version

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【ANYLOAD load cell 101BH-1t information】
ANYLOAD load cell 101BH-1t is hot selling product in China, in stock,manufacturers supply, quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com
ANYLOAD load cell 101BH-1t datasheet download：

ANYLOAD load cell 101BH-1t features：

●Material: Alloy steel

●Rated Capacities: 50kg, 100kg, 200kg, 300kg, 500kg, 1t, SE2t, 2t, 3t, 5t, 10t

●Full Scale Output: 2mV/V ± 1%

●Safe Overload: 150%

● Breaking Overload: 300%

●IP Rating: IP67

●NTEP 1:4 500 Class III, Single Cell certified from 100lb-500lb

●NTEP 1:5 500 Class III, Single Cell certified from 1Klb-20Klb

● OIML MAA C3, Y=17 000 certified from 200kg-1.5t

● OIML MAA C4.5, Y=14 000 certified from 2t-10t

●CE, RoHS and Ex certified

●Measurement Ukraine certified

ANYLOAD load cell 101BH-1t dimension：

ANYLOAD load cell 101BH-1t series models：

101BH-50kg 101BH-100kg 101BH-200kg 101BH-300kg 101BH-500kg 101BH-1t 101BH-SE2t 101BH-2t 101BH-5t 101BH-10t

101BH-1000kg 101BH-SE2000kg 101BH-2000kg 101BH-5000kg 101BH-10000kg

101BH-I-50kg 101BH-I-100kg 101BH-I-200kg 101BH-I-300kg 101BH-I-500kg 101BH-I-1t 101BH-I-2t 101BH-I-5t 101BH-I-10t

Shenzhen Huanan Hengtai Industrial Co.,Ltd supply 101BH-1t is a stable performance, excellent material weighing sensor, to meet the public for the tension measurement, compression measurement requirements and quality assurance, with the rapid development of industrialization, more and more modern applications in different industrial environments, and it is well-sealed, to meet the complex industrial environment The demand for force measurement is completed.

If you want to know more about 101BH-1t price, 101BH-1t delivery time, 101BH-1t manufacturer, 101BH-1t product information, 101BH-1t product specification, 101BH-1t technical parameters, 101BH-1t installation and debugging, 101BH-1t wiring mode, please contact E-mail:sales@hnhtsz.com
