ANYLOAD Load Cell

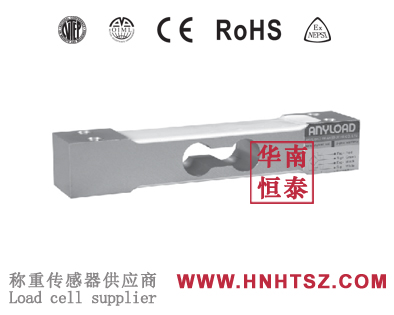

108BA-3kg load cell

Shape:Single point type load cell
Material:Aluminum
Load direction：Widely used in compression,but also can borrow parts for tension
Model:108BA-3kg 108BA-6kg 108BA-15kg 108BA-20kg 108BA-30kg 108BA-35kg 108BA-40kg 108BA-50kg 108BA-60kg 108BA-75kg 108BA-100kg 108BA-150kg
Product description: 108BA-3kgis a low-cost, high-precision sensor, which can be directly installed on the base of the scale or used in weighing and force measurement. It can be applied to the packaging scale, electronic
INQUIRY

Chinese Shenzhen Huanan Hengtai Industrial Co.,Ltd supply 108BA-3kg is a universal weighing sensor with strong applicability, wide application, compact structure, easy installation and easy use. It is favored by weighing scale designers.

Note: The following information is for reference, Please refer to ANYLOAD version

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【ANYLOAD load cell 108BA-3kg information】
ANYLOAD load cell 108BA-3kg is selling product in China, quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com
ANYLOAD load cell 108BA-3kg datasheet download：

ANYLOAD load cell 108BA-3kg features：

●Material: Aluminum

●Rated Capacities: 3kg, 6kg, 7kg, 10kg, 15kg, 20kg, 30kg, 35kg, 40kg, 45kg, 50kg, 60kg, 75kg, 100kg, 150kg

●Full Scale Output: 2mV/V ± 10%

●Safe Overload: 150%

●Breaking Overload: 300%

●IP Rating: IP66

●OIML C3, Y=4 300 certified from 10kg-150kg

●CE, RoHS, NTEP, and Ex certified

●Measurement Ukraine certified

●Measurement Spain certified

ANYLOAD load cell 108BA-3kg dimension：

ANYLOAD load cell 108BA-3kg series models：

108BA-3kg 108BA-6kg 108BA-15kg 108BA-20kg 108BA-30kg 108BA-35kg 108BA-40kg 108BA-50kg 108BA-60kg 108BA-75kg 108BA-100kg 108BA-150kg

Shenzhen HNHT supplies 108BA-3kgis a single-point sensor. The long strip shell announces the simplicity of the sensor. Installation holes are known at a glance. Installation methods are very simple. Whether it is used for electronic weighing measurement, or for the design of alarm equipment, it is very recommended. There is only one reason, simple installation, high precision. Good time lag.

If you want to know more about 108BA-3kg price, 108BA-3kg delivery time, 108BA-3kg manufacturer, 108BA-3kg product information, 108BA-3kg product specification, 108BA-3kg technical parameters, 108BA-3kg installation and debugging, 108BA-3kg wiring mode, please contact E-mail:sales@hnhtsz.com
