ANYLOAD Load Cell

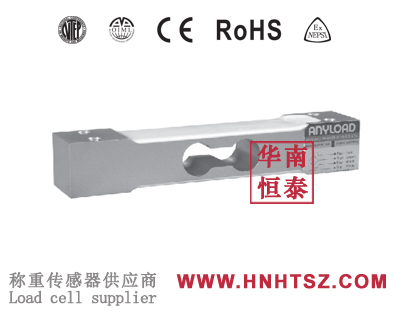

108BA-6kg load cell

Shape:Single point type load cell
Material:Aluminum
Load direction：Widely used in compression,but also can borrow parts for tension
Model:108BA-3kg 108BA-6kg 108BA-15kg 108BA-20kg 108BA-30kg 108BA-35kg 108BA-40kg 108BA-50kg 108BA-60kg 108BA-75kg 108BA-100kg 108BA-150kg
Product description: 108BA-6kgis a low-cost, high-precision sensor, which can be directly installed on the base of the scale or used in weighing and force measurement. It can be applied to the packaging scale, electronic
INQUIRY

Chinese Shenzhen Huanan Hengtai Industrial Co.,Ltd supply 108BA-6kg is a kind of single-point sensor. Its shape design is simple, lively, less material, lighter weight than other types of sensors, so it becomes a spokesman of low cost and high precision. On the other hand, the single-point sensor has excellent anti-eccentric load performance and can be installed directly on the base of the scale. And weighing platform is an ideal choice for OEM applications such as electronic scales and weighing machines.

Note: The following information is for reference, Please refer to ANYLOAD version

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【ANYLOAD load cell 108BA-6kg information】
ANYLOAD load cell 108BA-6kg is selling product in China, quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com
ANYLOAD load cell 108BA-6kg datasheet download：

ANYLOAD load cell 108BA-6kg features：

●Material: Aluminum

●Rated Capacities: 3kg, 6kg, 7kg, 10kg, 15kg, 20kg, 30kg, 35kg, 40kg, 45kg, 50kg, 60kg, 75kg, 100kg, 150kg

●Full Scale Output: 2mV/V ± 10%

●Safe Overload: 150%

●Breaking Overload: 300%

●IP Rating: IP66

●OIML C3, Y=4 300 certified from 10kg-150kg

●CE, RoHS, NTEP, and Ex certified

●Measurement Ukraine certified

●Measurement Spain certified

ANYLOAD load cell 108BA-6kg dimension：

ANYLOAD load cell 108BA-6kg series models：

108BA-3kg 108BA-6kg 108BA-15kg 108BA-20kg 108BA-30kg 108BA-35kg 108BA-40kg 108BA-50kg 108BA-60kg 108BA-75kg 108BA-100kg 108BA-150kg

Shenzhen HNHT supplies 108BA-6kgis single-point sensor, simple and fashionable shape design, clean atmosphere, texture, this sensor is specially designed for electronic weighing, easy to fit into any needs of its various designs, stable performance, high precision, easy to install.

If you want to know more about 108BA-6kg price, 108BA-6kg delivery time, 108BA-6kg manufacturer, 108BA-6kg product information, 108BA-6kg product specification, 108BA-6kg technical parameters, 108BA-6kg installation and debugging, 108BA-6kg wiring mode, please contact E-mail:sales@hnhtsz.com
