ANYLOAD Load Cell

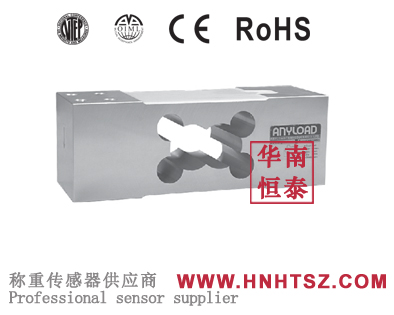

108CA-10kg load cell

Shape:Single point type load cell
Material:Aluminum
Load direction：Widely used in compression
Model:108CA-10kg 108CA-20kg 108CA-30kg 108CA-60kg 108CA-100kg 108CA-150kg 108CA-200kg 108CA-250kg 108CA-300kg 108CA-500kg 108CA-600kg 108CA-750kg 108CA-1t
Product description: 108CA-10kg is a low-cost, high-precision sensor, which can be directly installed on the base of the scale or used in weighing and force measurement. It can be applied to the packaging scale, electroni
INQUIRY

Shenzhen Huanan Hengtai Industrial Co.,Ltd supply 108CA-10kg is a single-point sensor that can be mounted directly on a low-cost weighing platform with a special anti-moisture coating to ensure long-term stability over the entire temperature compensation range.

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【ANYLOAD load cell 108CA-10kg information】
ANYLOAD load cell 108CA-10kg is hot selling product in China,quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com
ANYLOAD load cell 108CA-10kg datasheet download：

ANYLOAD load cell 108CA-10kg features：

●Material: Aluminum

●Rated Capacities: 10kg, 20kg,30kg, 60kg, 100kg, 150kg, 200kg, 250kg, 300kg, 500kg, 600kg, 750kg, 1t

●Full Scale Output: 2mV/V ± 10%

●Safe Overload: 150%

●Breaking Overload: 300%

●IP Rating: IP66

●NTEP 1:4 000, Class III, Single Cell certified from 200kg-2t

●OIML C3, Y=4 300 certified from 10kg-500kg

●CE and RoHS certified

●Measurement Ukraine certified

●Measurement Spain certified

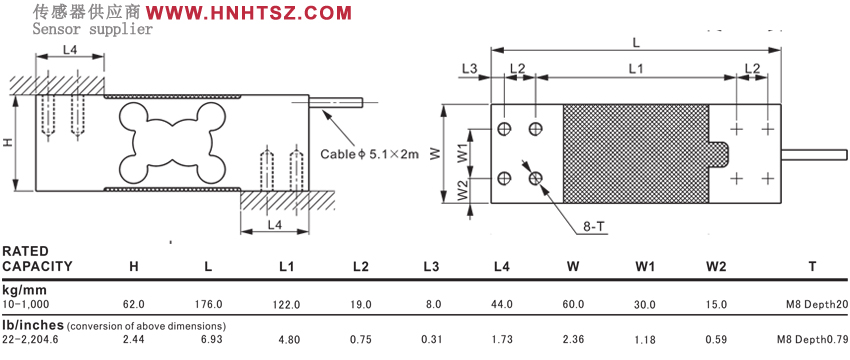

ANYLOAD load cell 108CA-10kg dimension：

ANYLOAD load cell 108CA-10kg series models：

108CA-10kg 108CA-20kg 108CA-30kg 108CA-60kg 108CA-100kg 108CA-150kg 108CA-200kg 108CA-250kg 108CA-300kg 108CA-500kg 108CA-600kg 108CA-750kg 108CA-1t

108CA-1000kg

Shenzhen Huanan Hengtai Industrial Co.,Ltd 108CA-10kgis a single-point sensor that can be mounted directly on a low-cost weighing platform with a special anti-moisture coating to ensure long-term stability over the entire temperature compensation range.

If you want to know more about 108CA-10kg price, 108CA-10kg delivery time, 108CA-10kg manufacturer, 108CA-10kg product information, 108CA-10kg product specification, 108CA-10kg technical parameters, 108CA-10kg installation and debugging, 108CA-10kg wiring mode, please contact E-mail:sales@hnhtsz.com
