ANYLOAD Load Cell

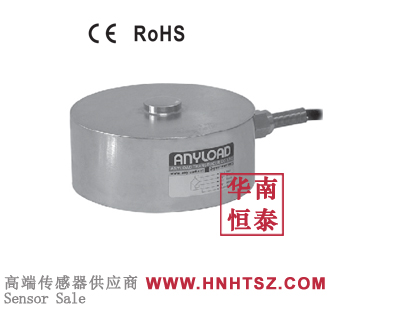

266AA load cell

Shape:Disk Type load cell
Material:Aluminum
Load direction：Compression
Model:266AA-25kg 266AA-50kg 266AH-100kg 266AH-200kg 266AH-250kg 266AH-500kg 266AH-1t 266AH-2t 266AH-5t 266AH-10t 266AH-20t 266AH-30t
Product description: 266AAis suitable for force measurement in limited spaces.Widely used for industrial measurement and control， R&D and other applications.
INQUIRY

Chinese Shenzhen Huanan Hengtai Industrial Co.,Ltd sale 266AA as a kind of micro-force sensor, it is very sensitive from contact to sensing to the change of force value. At the same time, light weight, low cross-section, good packaging gives it more mission. At the same time, dust-proof, moisture-proof function, it can be used in a variety of force measurement environment, is one of the best micro-weighing sensors.

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【ANYLOAD load cell 266AA information】
ANYLOAD load cell 266AA is selling product in China, in stock,quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com
ANYLOAD load cell 266AA datasheet download：

ANYLOAD load cell 266AA features：

●Material: Aluminum

●Rated Capacities: 25kg, 50kg (weight 0.3kg)

●Patent design.

●The structure is small and low.

●Small deflection, the compact structure makes it have extraordinary anti-interference ability.

●Suitable for impact occasions and dynamic weighing.

●Use of hazardous environment.

●Obtain CE and RoHS certification.

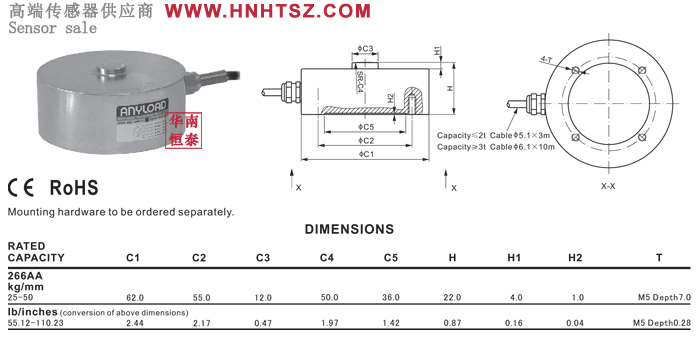

ANYLOAD load cell 266AA dimension：

CAPACITY	Unit	C1	C2	C3	C4	C5	H	H1	H2	T
25kg-50kg	mm	62	55	12	50	36	22	4	1	M5 Depth 7.0
55.12lb-110.23lb	inches	2.44	2.17	0.47	1.97	1.42	0.87	0.16	0.04	M5 Depth 0.28
Cable length	3m
Cable Color Code	Red(+E) Black(-E) Green(+S) White(-S) Bare(SHIELD)

ANYLOAD load cell 266AA series models：

266AA-25kg 266AA-50kg

266AAis ideal for applications such as clamping force, bolt load, and other compression loads through extremely low profiles and compact designs. With its sealed structure and environmental protection design, the series has been proven to work reliably in various industrial applications in complex environments.

If you want to know more about 266AA price, 266AA delivery time, 266AA manufacturer, 266AA product information, 266AA product specification, 266AA technical parameters, 266AA installation and debugging, 266AA wiring mode, please contact E-mail:sales@hnhtsz.com.
