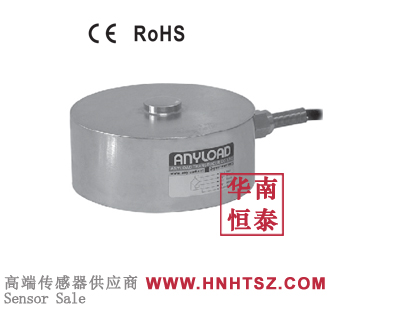

266AH-100kg is one of the most outstanding micro-pressure transducers. Based on the design of small cylinder and the design of low disk surface, the space occupied by the micro-weighing transducer tends to be smaller. It solves the requirement of many industries to use the weighing transducer in limited space. At the same time, it has stable performance and sealed design. The micro sensor can be used for dust prevention and moistureproof, and can be applied to different measuring environment.
【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
Note: The following information is for reference, Please refer to ANYLOAD version
【ANYLOAD load cell 266AH-100kg information】
ANYLOAD load cell 266AH-100kg is hot selling product in China, in stock,manufacturers supply, quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com
ANYLOAD load cell 266AH-100kg datasheet download：
ANYLOAD load cell 266AH-100kg FEATURES：
●Capacity: 100kg, 200kg, 300kg, 500kg, 1T, 2T (weight 0.5kg); 3t, 5t, 10t (weight 2.4kg); 20t (weight 4.2kg); 30t (weight 8.3kg).
●Material: alloy steel
●Patent design
●The structure is small and low.
●Small deflection, the compact structure makes it have extraordinary anti-interference ability.
●Suitable for impact occasions and dynamic weighing.
●Full welding seal, protection grade IP67
●Use of hazardous environment
●Obtain CE and RoHS certification.
●Optional:
- heat resistant 120 [248 C]
- lightning protection and high current.
- six line system
- stainless steel (range greater than 100kg) 266AS
- IP68

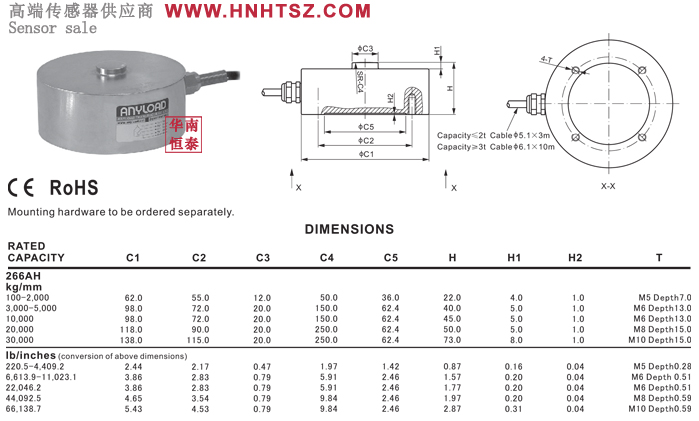

ANYLOAD load cell 266AH-100kg dimension：
ANYLOAD load cell 266AH-100kg series models：
266AH-100kg 266AH-200kg 266AH-250kg 266AH-500kg 266AH-1t 266AH-2t 266AH-5t 266AH-10t 266AH-20t 266AH-30t
266AH-1000kg 266AH-2000kg 266AH-5000kg 266AH-10000kg 266AH-20000kg 266AH-30000kg
266AH-100kgis compact size, universal structure, low cross-section, sealed, cable-type output, output signals of a variety of optional (voltage/current), widely used in automation equipment for weighing or force measurement, is a force-measuring micro-weighing sensor rare excellent recommendation.
If you want to know more about 266AH-100kg price, 266AH-100kg delivery time, 266AH-100kg manufacturer, 266AH-100kg product information, 266AH-100kg product specification, 266AH-100kg technical parameters, 266AH-100kg installation and debugging, 266AH-100kg wiring mode, please contact E-mail:sales@hnhtsz.com
