KYOWA load cell

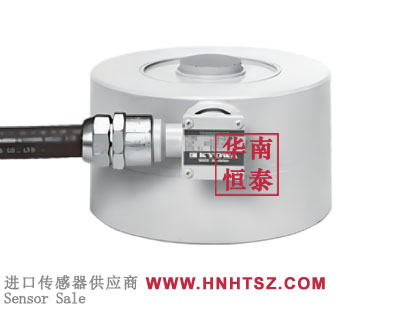

  • LCH-10TF JAPAN Compression Load Cell
LCH-10TF JAPAN Compression Load Cell

LCH-10TF JAPAN Compression Load Cell

  • Remote sensing possible.Watertight structure.Useable in high humidity.
  • Able to Measure Compression Loads with Nonlinearity 0.02%.
  • Direction of force: High-accuracy Compression Load Cell
  • Model:LCH-10TF,LCH-20TF
  • Product description: LCH-10TF is a high-precision compression load sensor, the use of compact design, makes the installation and layout more convenient, can adapt to a variety of narrow space environment, to meet the need
  • INQUIRY

China Shenzhen Huanan Hengtai Industrial Co.,Ltd sale LCH-10TF it has good environmental adaptability. it can withstand a variety of complex environmental conditions. this excellent performance guarantees the stability and reliability of the sensor in harsh environments, ensuring the accuracy and consistency of the measurement data.

 Inquiry for Quotation→E-mail:sales@hnhtsz.com

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【KYOWA ELECTRONIC INSTRUMENTS CO LTD JAPAN Compression Load Cell LCH-10TF information】

Note: The following information is for reference, Please refer to KYOWA ELECTRONIC INSTRUMENTS CO LTD version
KYOWA ELECTRONIC INSTRUMENTS CO LTD JAPAN Compression Load Cell LCH-10TF datasheet download:


KYOWA ELECTRONIC INSTRUMENTS CO LTD JAPAN Compression Load Cell LCH-10TF features

Nonlinearity: ±0.02%RO or less
Lag: ±0.02%RO or less
Repeatability: 0.02%RO or less
Rated output: 2mV/V (4000×10-6 variable) ±0.1%
Allowable operating temperature range: 35~80℃
Temperature compensation range: -10-60℃
Zero temperature effect: ±0.0015%RO/℃ or less
Output temperature effect: ±0.001%RO/℃ or less
Maximum excitation voltage: 20V AC or DC
Recommended excitation voltage: 1-10V AC or DC
Input resistance: 350Ω±0.5%
Output resistance: 350Ω±0.5%
Cable: 0.5mm2, 6-core shielded neoprene armored cable 5m, outer diameter 9.5mm, front end crimping terminal (M4)(shielded cable is not connected to the host)
Safe overload: 200%
Protection level: IP67 (IEC 60529)

KYOWA ELECTRONIC INSTRUMENTS CO LTD JAPAN Compression Load Cell LCH-10TF dimension:

KYOWA ELECTRONIC INSTRUMENTS CO LTD JAPAN Compression Load Cell LCH-10TF series models:

LCH-10TF

LCH-10TF,LCH-20TF

If you want to know more about  price, LCH-10TF delivery time, LCH-10TF manufacturer, LCH-10TF product information, LCH-10TF product specification, LCH-10TF technical parameters, LCH-10TFinstallation and debugging, LCH-10TFwiring mode, please contact E-mail:sales@hnhtsz.com
