KYOWA load cell

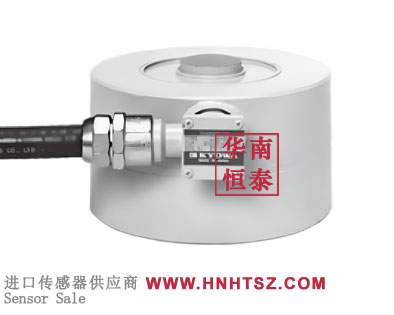

LCH-10TF Load Cell

Remote sensing possible.Watertight structure.Useable in high humidity.
Able to Measure Compression Loads with Nonlinearity 0.02%.
Direction of force: High-accuracy Compression Load Cell
Model:LCH-10TF,LCH-20TF
Product description: LCH-10TF is a high-precision compression load sensor, the use of compact design, makes the installation and layout more convenient, can adapt to a variety of narrow space environment, to meet the need
INQUIRY

China Shenzhen Huanan Hengtai Industrial Co.,Ltd sale LCH-10TF it has good environmental adaptability and can maintain stable performance output in different working environments. whether indoor or outdoor, dry or wet, the sensor works and provides accurate measurement data.

Inquiry for Quotation→E-mail:sales@hnhtsz.com

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【KYOWA Load Cell LCH-10TF information】

Note: The following information is for reference, Please refer to KYOWA version
KYOWA Load Cell LCH-10TF datasheet download：

KYOWA Load Cell LCH-10TF features：

Nonlinearity: ±0.02%RO or less
Lag: ±0.02%RO or less
Repeatability: 0.02%RO or less
Rated output: 2mV/V (4000×10-6 variable) ±0.1%
Allowable operating temperature range: 35~80℃
Temperature compensation range: -10-60℃
Zero temperature effect: ±0.0015%RO/℃ or less
Output temperature effect: ±0.001%RO/℃ or less
Maximum excitation voltage: 20V AC or DC
Recommended excitation voltage: 1-10V AC or DC
Input resistance: 350Ω±0.5%
Output resistance: 350Ω±0.5%
Cable: 0.5mm2, 6-core shielded neoprene armored cable 5m, outer diameter 9.5mm, front end crimping terminal (M4)(shielded cable is not connected to the host)
Safe overload: 200%
Protection level: IP67 (IEC 60529)

KYOWA Load Cell LCH-10TF dimension：

KYOWA Load Cell LCH-10TF series models：

LCH-10TF

LCH-10TF,LCH-20TF

If you want to know more about price, LCH-10TF delivery time, LCH-10TF manufacturer, LCH-10TF product information, LCH-10TF product specification, LCH-10TF technical parameters, LCH-10TFinstallation and debugging, LCH-10TFwiring mode, please contact E-mail:sales@hnhtsz.com
