KYOWA load cell

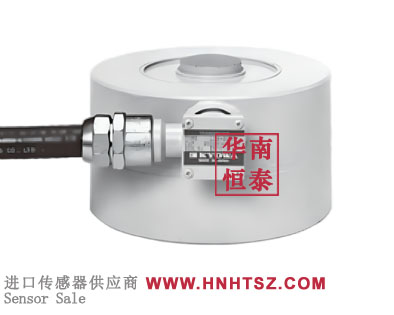

LCH-20TF Load Cell

Remote sensing possible.Watertight structure.Useable in high humidity.
Able to Measure Compression Loads with Nonlinearity 0.02%.
Direction of force: High-accuracy Compression Load Cell
Model:LCH-10TF,LCH-20TF
Product description: LCH-20TF is a high-precision compression load sensor, the use of compact design, makes the installation and layout more convenient, can adapt to a variety of narrow space environment, to meet the need
INQUIRY

China Shenzhen Huanan Hengtai Industrial Co.,Ltd sale LCH-20TF durable materials and advanced manufacturing processes are usually used to ensure stability and reliability in a variety of harsh environments. at the same time, the sensor also has waterproof, dustproof, anti-interference and other characteristics, can adapt to a variety of complex working environment.

Inquiry for Quotation→E-mail:sales@hnhtsz.com

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【KYOWA Load Cell LCH-20TF information】

Note: The following information is for reference, Please refer to KYOWA version
KYOWA Load Cell LCH-20TF datasheet download：

KYOWA Load Cell LCH-20TF features：

Nonlinearity: ±0.02%RO or less
Lag: ±0.02%RO or less
Repeatability: 0.02%RO or less
Rated output: 2mV/V (4000×10-6 variable) ±0.1%
Allowable operating temperature range: 35~80℃
Temperature compensation range: -10-60℃
Zero temperature effect: ±0.0015%RO/℃ or less
Output temperature effect: ±0.001%RO/℃ or less
Maximum excitation voltage: 20V AC or DC
Recommended excitation voltage: 1-10V AC or DC
Input resistance: 350Ω±0.5%
Output resistance: 350Ω±0.5%
Cable: 0.5mm2, 6-core shielded neoprene armored cable 5m, outer diameter 9.5mm, front end crimping terminal (M4)(shielded cable is not connected to the host)
Safe overload: 200%
Protection level: IP67 (IEC 60529)

KYOWA Load Cell LCH-20TF dimension：

KYOWA Load Cell LCH-20TF series models：

LCH-20TF

LCH-10TF,LCH-20TF

If you want to know more about price, LCH-20TF delivery time, LCH-20TF manufacturer, LCH-20TF product information, LCH-20TF product specification, LCH-20TF technical parameters, LCH-20TFinstallation and debugging, LCH-20TFwiring mode, please contact E-mail:sales@hnhtsz.com
