China Shenzhen Huanan Hengtai Industrial Co.,Ltd sale LUH-10TF is able to withstand tensile and compressive forces at the same time, so as to achieve a comprehensive measurement of the mechanical properties of the object. the sensor is characterized by high sensitivity and high resolution, which can capture small mechanical changes and provide accurate data support for scientific research and engineering applications.
Inquiry for Quotation→E-mail:sales@hnhtsz.com
【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation

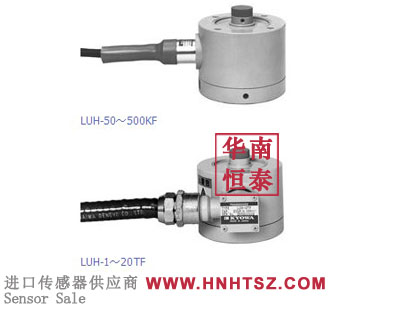

【KYOWA load cell LUH-10TF information】
Note: The following information is for reference, Please refer to KYOWA version
KYOWA load cell LUH-10TF datasheet download：
KYOWA load cell LUH-10TF features： Rated Capacity See table below. Nonlinearity Within ±0.02% RO Hysteresis Within ±0.02% RO Repeatability 0.02% RO or less Zero Float 0.02% RO or less for 500 N to 5 kN Rated Output 2 mV/V ±0.1% Environmental Characteristics Safe Temperature -35 to 80°C Compensated Temperature -10 to 60°C Temperature Effect on Zero Within ±0.0015% RO/°C Temperature Effect on Output Within ±0.001%/°C Electrical Characteristics Safe Excitation 20 V AC or DC Recommended Excitation 1 to 10 V AC or DC Input Resistance 350 Ω±0.5% Output Resistance 350 Ω±0.5% Cable 6-conductor (0.5 mm2) chloroprene shielded cable, 9.5 mm diameter by 5 m long, with Crimp-style terminals for 4 mm (Shield wire is not connected to the case.) Mechanical Properties Safe Overloads 150% Natural Frequencies See table below. Weight See table below. Others Drop prevention stopper mountable (*) Ultimate Overload 1000% (500 N to 5 kN)
