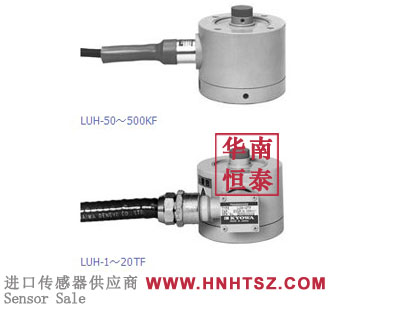

China Shenzhen Huanan Hengtai Industrial Co.,Ltd sale LUH-20TF is a tension compression structure sensor, also known as tension pressure sensor, is a sensor that can measure tensile or compressive force. it is widely used in various applications where force, pressure or displacement needs to be measured, such as the automotive industry, wind power generation, manufacturing and medical fields.
Inquiry for Quotation→E-mail:sales@hnhtsz.com
【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【KYOWA load cell LUH-20TF information】
Note: The following information is for reference, Please refer to KYOWA version
KYOWA load cell LUH-20TF datasheet download：
KYOWA load cell LUH-20TF features： Rated Capacity See table below. Nonlinearity Within ±0.02% RO Hysteresis Within ±0.02% RO Repeatability 0.02% RO or less Zero Float 0.02% RO or less for 500 N to 5 kN Rated Output 2 mV/V ±0.1% Environmental Characteristics Safe Temperature -35 to 80°C Compensated Temperature -10 to 60°C Temperature Effect on Zero Within ±0.0015% RO/°C Temperature Effect on Output Within ±0.001%/°C Electrical Characteristics Safe Excitation 20 V AC or DC Recommended Excitation 1 to 10 V AC or DC Input Resistance 350 Ω±0.5% Output Resistance 350 Ω±0.5% Cable 6-conductor (0.5 mm2) chloroprene shielded cable, 9.5 mm diameter by 5 m long, with Crimp-style terminals for 4 mm (Shield wire is not connected to the case.) Mechanical Properties Safe Overloads 150% Natural Frequencies See table below. Weight See table below. Others Drop prevention stopper mountable (*) Ultimate Overload 1000% (500 N to 5 kN)
