KYOWA load cell

LUH-200KF load cell

Shape:Enclosed structure with inert gas inside
Nonlinearity: ±0.02%RO or less
Direction of force: high-precision tensile compression dual-purpose load sensor

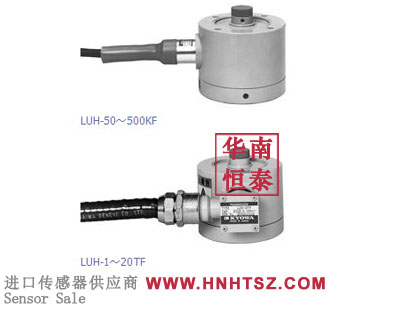

Model:LUH-50KF,LUH-100KF,LUH-200KF,LUH-500KF,LUH-1TF,LUH-2TF,LUH-5TF,LUH-10TF,LUH-20TF
Product description: LUH-200KF use for measuring tension or compression loads with an airtight seal, filled with inert gas and excellent zero float characteristics.
INQUIRY

China Shenzhen Huanan Hengtai Industrial Co.,Ltd sale LUH-200KF in the measurement process, the mechanical change data can be captured in real time and accurately, and converted into readable electrical signal output. this enables users to intuitively understand the mechanical behavior of the measured object, and then carry out accurate analysis and processing. in addition, the sensor also has a high degree of reliability and stability, even in extreme working environments, can maintain excellent performance.

Inquiry for Quotation→E-mail:sales@hnhtsz.com

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【KYOWA load cell LUH-200KF information】

Note: The following information is for reference, Please refer to KYOWA version
KYOWA load cell LUH-200KF datasheet download：

KYOWA load cell LUH-200KF features：

Rated Capacity	See table below.
Nonlinearity	Within ±0.02% RO
Hysteresis	Within ±0.02% RO
Repeatability	0.02% RO or less
Zero Float	0.02% RO or less for 500 N to 5 kN
Rated Output	2 mV/V ±0.1%

Environmental Characteristics
Safe Temperature				-35 to 80°C
Compensated Temperature				-10 to 60°C
Temperature Effect on Zero				Within ±0.0015% RO/°C
Temperature Effect on Output				Within ±0.001%/°C
Electrical Characteristics
Safe Excitation			20 V AC or DC
Recommended Excitation			1 to 10 V AC or DC
Input Resistance			350 Ω±0.5%
Output Resistance			350 Ω±0.5%
Cable 6-conductor (0.5 mm2) chloroprene shielded cable,
9.5 mm diameter by 5 m long, with Crimp-style terminals for 4 mm
(Shield wire is not connected to the case.)
Mechanical Properties
Safe Overloads		150%
Natural Frequencies		See table below.
Weight		See table below.
Others		Drop prevention stopper mountable (*)
Ultimate Overload		1000% (500 N to 5 kN)
