China Shenzhen Huanan Hengtai Industrial Co.,Ltd sale LUH-500KF in the manufacturing process, the sensor has undergone strict quality control and testing to ensure its stable and reliable performance. the output signal is stable and linear, and it is easy to integrate with data acquisition system and control system, which provides convenience for automation and intelligent application.
Inquiry for Quotation→E-mail:sales@hnhtsz.com
【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation

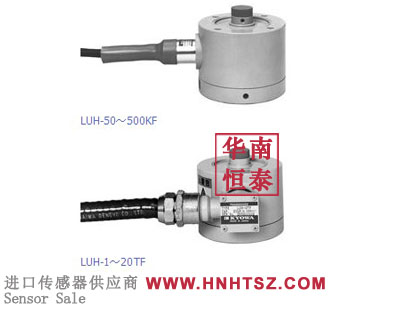

【KYOWA load cell LUH-500KF information】
Note: The following information is for reference, Please refer to KYOWA version
KYOWA load cell LUH-500KF datasheet download：
KYOWA load cell LUH-500KF features： Rated Capacity See table below. Nonlinearity Within ±0.02% RO Hysteresis Within ±0.02% RO Repeatability 0.02% RO or less Zero Float 0.02% RO or less for 500 N to 5 kN Rated Output 2 mV/V ±0.1% Environmental Characteristics Safe Temperature -35 to 80°C Compensated Temperature -10 to 60°C Temperature Effect on Zero Within ±0.0015% RO/°C Temperature Effect on Output Within ±0.001%/°C Electrical Characteristics Safe Excitation 20 V AC or DC Recommended Excitation 1 to 10 V AC or DC Input Resistance 350 Ω±0.5% Output Resistance 350 Ω±0.5% Cable 6-conductor (0.5 mm2) chloroprene shielded cable, 9.5 mm diameter by 5 m long, with Crimp-style terminals for 4 mm (Shield wire is not connected to the case.) Mechanical Properties Safe Overloads 150% Natural Frequencies See table below. Weight See table below. Others Drop prevention stopper mountable (*) Ultimate Overload 1000% (500 N to 5 kN)
